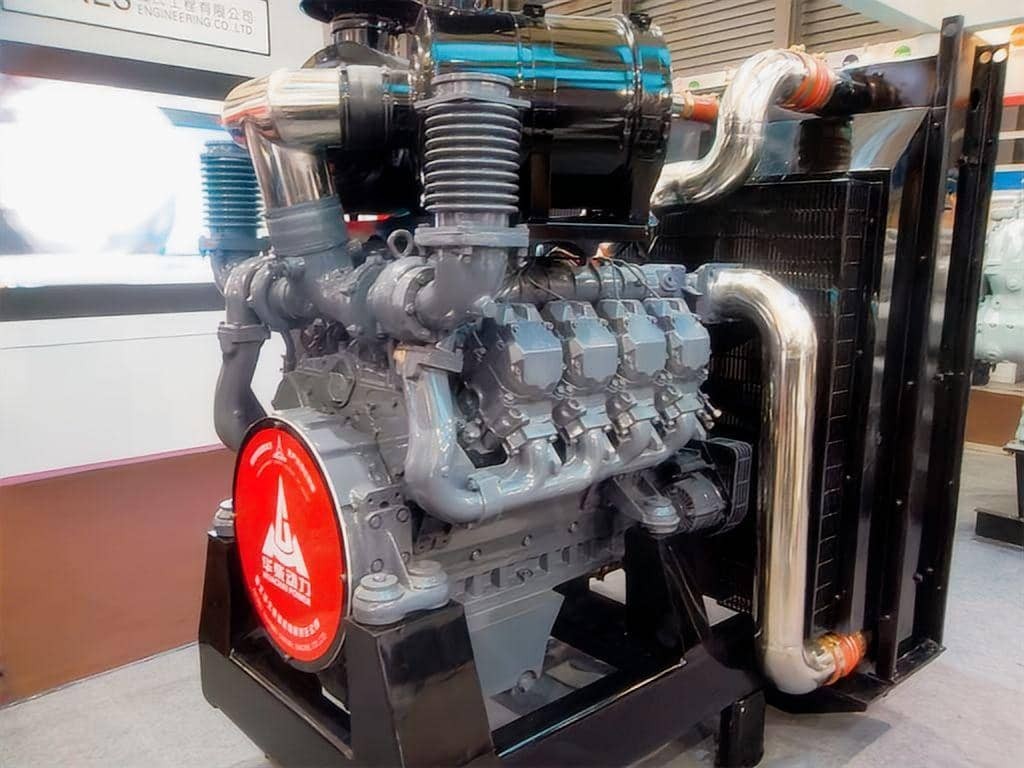

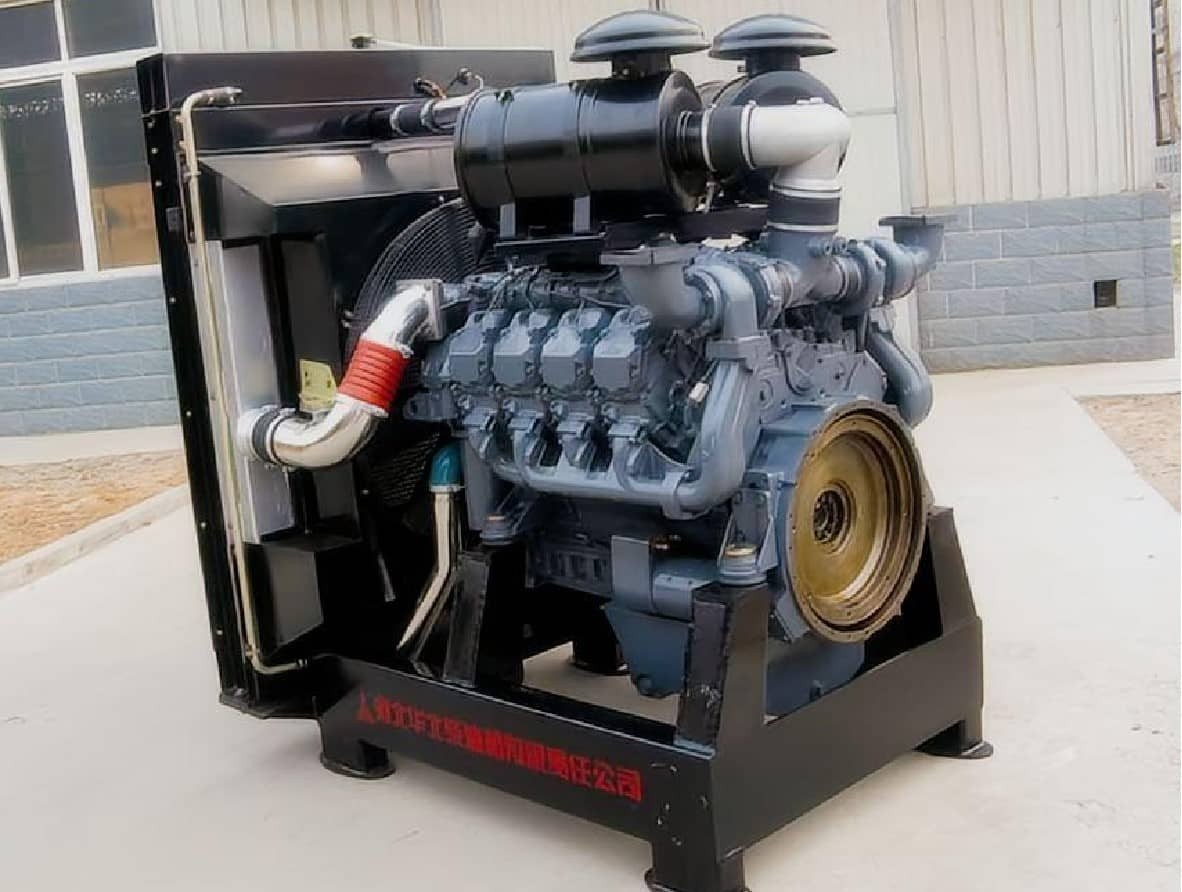

Deutz BF8M1015C-G1B Generator Engine
The Deutz BF8M1015C-G1B is a heavy-duty, 8-cylinder V-type diesel engine built specifically to drive high-output prime and standby generator sets. Engineered under official Deutz license by Huachai Deutz, this model delivers 408 kW (547 HP) at 1800 RPM, making it an ideal prime mover for 60Hz commercial and industrial generators rated up to 500 kVA.
As an experienced export supplier, HekoPower provides genuine BF8M1015C-G1B G-Drive engines complete with factory-tested cooling assemblies, electronic governors, and original manufacturer documentation for global dispatch.
Tech Specs of Deutz BF8M1015C-G1B Generator Engine
General Engine Data
Engine Model: Deutz BF8M1015C-G1B
Type: 8 Cylinders in Line
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1060 Kg
Overall Dimension: 1151mm*955mm*1174mm
Key Performance Data
Rated Power: 408 kW
Rated Speed: 1800 rpm
Low Idle Speed: 550-650 rpm
Specific Fuel Consumption: 205 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: EUP
Cooling Method: Water Cooled
Lubricant Capacity: 50 L
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Real Application Scenarios
The Huachai Deutz BF8M1015C-G1B is engineered for installations requiring high power density and reliable cold starting.
Data Center Backup Power
Data centers require instant power pick-up without frequency dips. The BF8M1015C-G1B standby diesel generator power profile handles 100% block load acceptance within ISO 8528-5 G2 standards, keeping UPS batteries charged during grid outages.
Critical Hospital Facilities
Hospitals cannot tolerate power interruption. Equipped with an optional jacket water heater, this Deutz 8 cylinder generator engine starts and accepts full load in under 10 seconds.
Remote Mining & Construction Sites
Mining operations in harsh environments need simple, mechanical-friendly engines. The V8 layout permits easy access to unit injectors, filters, and turbochargers without removing adjacent body panels.
Technical Comparisons
Choosing the correct drive engine requires comparing thermal load, fuel sensitivity, and maintenance overhead against competing platforms.
BF8M1015C-G1B vs. BF8M1015CP
The standard BF8M1015C-G1B is optimized for continuous 1800 RPM generation. The BF8M1015CP variant features higher charge-air cooling capacity, pushing power output higher for short burst standby demands, but requires larger cooling packages.
BF8M1015C-G1B vs. Cummins QSM11 / NTA855
While the Cummins NTA855 is a reliable inline-6 engine, the Deutz V8 generator engine offers a shorter block length. This makes it easier to fit inside compact generator enclosures where overall skid length is restricted.
BF8M1015C-G1B vs. Volvo Penta TAD13 Series
Volvo engines rely heavily on modern ECU electronics. The Genuine Deutz BF8M1015C-G1B utilizes robust mechanical fuel injection systems with optional electronic governing, making it easier to service in remote regions lacking proprietary diagnostic software.
Maintenance & Overhaul Guidelines
Proper servicing ensures your Deutz BF8M1015C-G1B replacement engine reaches its standard 15,000 to 20,000-hour overhaul threshold.
Service Intervals
- Every 250 Hours: Change engine oil, oil filters, and primary fuel filters. Inspect drive belts.
- Every 500 Hours: Replace fuel-water separators, clean air filter elements, and check coolant inhibitor levels.
- Every 1,500 Hours: Check valve clearances (0.3 mm intake, 0.5 mm exhaust) and inspect turbocharger radial play.
Overhaul & Replacement Advice
When executing a major overhaul on a Huachai Deutz BF8M1015C-G1B, replace cylinder liners, piston rings, main bearings, and injector nozzles simultaneously. HekoPower supplies complete BF8M1015C-G1B overhaul parts kits matched to exact engine serial numbers.
Deutz BFM1015-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015-GA, BF6M1015C-G1A, BF6M1015C-G2A, BF6M1015C-G3A, BF6M1015C-G4A, BF6M1015-GB, BF6M1015C-G1B, BF6M1015C-G2B, BF6M1015C-G3B, BF6M1015CP-G, BF8M1015C-G1A, BF8M1015C-G1B, BF8M1015C-G2, BF8M1015CP-G1A, BF8M1015CP-G1B, BF8M1015CP-G2, BF8M1015CP-G3, BF8M1015CP-G4, BF8M1015CP-G5, BF8M1015CP-G2B, BF8M1015CP-G3B.
Frequently Asked Questions
Is the Huachai Deutz BF8M1015C-G1B identical to German-built Deutz engines?
Yes. Huachai operates under direct license and technology transfer from Deutz AG Germany. The engine components follow exact original blueprints, making parts fully interchangeable between German and Huachai-built units.
What is the delivery lead time for a complete BF8M1015C-G1B engine assembly?
HekoPower maintains regular factory stock. Standard delivery takes 15 to 20 business days from order confirmation to export loading.
Can I use this engine for a 50Hz (1500 RPM) generator set?
While this specific G1B configuration is calibrated for 1800 RPM (60Hz), HekoPower can supply factory governor recalibrations or alternative 1500 RPM variants for 50Hz power requirements.
Does HekoPower provide genuine spare parts for long-term maintenance?
Yes. We supply OEM BF8M1015C-G1B spare parts, including overhaul gasket sets, injection pumps, starters, alternators, and filters directly from production lines.
