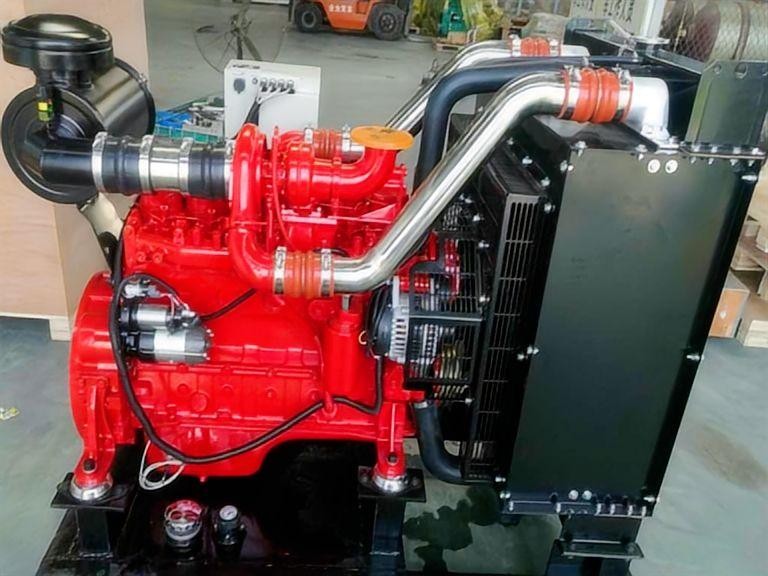

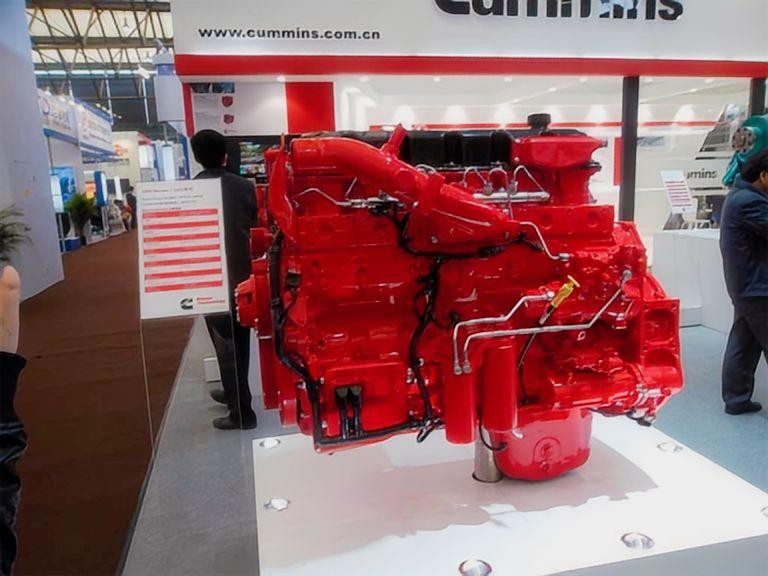

Genuine Cummins QSZ13-G2 400kW Industrial Generator Engine
Securing reliable prime and standby power requires an engine designed for continuous heavy-duty cycles. As a dedicated engine supplier, HekoPower provides the genuine Cummins QSZ13-G2 400kW industrial generator engine to manufacturers and project operators globally. This 13.0L engine delivers exceptional transient response and load acceptance, making it a cornerstone for industrial power generation.
Engineers tasked with building or upgrading a 400kW / 500kVA Cummins diesel genset engine system need more than just standard spec sheets to make informed decisions. Understanding the mechanical nuances, fuel efficiency curves, and maintenance realities of the QSZ13-G2 ensures you are specifying the right power pack for your specific operational environment.
Tech Specs of Cummins QSZ13-G2 400kW
General Engine Data
Engine Model: Cummins QSZ13-G2-400KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight: 1195 Kg
Overall Dimension: 2180mm*1360mm*1605mm
Key Performance Data
Rated Power(1500 rpm): 400 kW/536HP
Continuous Output/Speed (1500 rpm): 340 kW/456HP @ 1500 rpm
Rated Power(1800 rpm): 408 kW/547HP
Continuous Output/Speed (1800 rpm): 347 kW/465HP @ 1800 rpm
Rated Speed: 1500/1800 rpm
Low Idle Speed: 700 rpm
Fuel Consumption @ Running: ≤ 258 g/kW.h
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: Cummins XPI/HPCR Fuel System
Electrical System (Starter Motor/Alternator): 24V/900CCA
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Governor Type: Electronic, Regulation ≤3%
Compression Ratio: 17:1
Ignition Order: 1-5-3-6-2-4
Real Application Scenarios and Performance
The Cummins QSZ13-G2 generator drive engine is engineered for versatility across demanding environments, from remote mining operations to critical backup systems in manufacturing facilities. When configuring a 500kVA genset, the operational speed dictates the output. The QSZ13-G2 400kW 1500rpm generator engine is standard for 50Hz markets, while the QSZ13-G2 408kW 1800rpm engine configuration serves 60Hz applications.
One crucial engineering decision is selecting compatible components. The QSZ13-G2 seamlessly integrates with premium controller panels for Cummins QSZ13-G2 engines, such as Deep Sea or ComAp units, leveraging its electronic governor for precise load management. Furthermore, when pairing this engine, operators frequently utilize Cummins QSZ13-G2 compatible alternators from trusted brands like Stamford and Leroy Somer. This ensures optimal power transfer whether the unit is deployed for continuous prime power or intermittent standby operations.
Understanding QSZ13-G2 400kW standby power vs prime power ratings is essential. In prime power applications, this engine runs continuously under variable loads, delivering a consistent baseline of power. In standby configurations, it acts as a fail-safe, providing immediate maximum output during grid outages.
Technical Comparisons in the 400kW Class
Evaluating the QSZ13-G2 against other models clarifies its engineering advantages. A frequent point of analysis is the QSZ13-G2 vs 6ZTAA13-G4. Both occupy a similar power node, but the QSZ13-G2 offers refined electronic management and a robust 24V diesel engine starting system designed for harsher climates.
When comparing the 400kW QSZ13-G2 engine vs 400kW 6ZTAA13 engine, buyers often note the QSZ13-G2's advanced air-to-air intercooler setup and its specific 130 × 163 mm engine bore and stroke. This geometry provides superior low-end torque, essential for recovering voltage drops during sudden heavy motor starts.
Another common comparison is the Cummins QSZ13-G2 vs QSZ13-G3. While the G2 is optimized strictly for the 400kW node, the 450kW QSZ13-G3 pushes the limits of the 13-liter block for higher output demands. Furthermore, when evaluating the QSZ13-G2 vs larger 15L Cummins generator engines, the 13.0L footprint of the QSZ series offers a significantly better power-to-weight ratio. This reduces the overall Cummins QSZ13-G2 engine dimensions and weight, lowering shipping costs and requiring a smaller installation footprint without sacrificing output stability.
Overcoming Common Misconceptions
A prevalent misconception in the market involves the fuel delivery mechanisms. Buyers frequently confuse the QSZ13-G2 HPCR fuel system with the QSZ13-G2 XPI fuel system. The QSZ13-G2 utilizes the highly proven High-Pressure Common-Rail (HPCR) fuel system. This technology maintains high injection pressures independent of engine speed, resulting in exceptional combustion efficiency and reduced emissions. While the XPI system is prominent in other Cummins vehicle engines, the HPCR system is specifically optimized for the steady-state operations required by a generator drive engine.
Another area of confusion is fuel efficiency under partial loads. Operators often calculate operating expenses using only the maximum consumption figures. However, the QSZ13-G2 400kW fuel efficiency curve is highly dynamic. While the Cummins QSZ13-G2 fuel consumption per hour at full load represents the maximum draw, real-world operations rarely sustain 100% load continuously. Evaluating the Cummins QSZ13-G2 fuel consumption at 75% load and the Cummins QSZ13-G2 fuel consumption at 50% load provides a much more accurate picture of monthly diesel expenses. The electronic governor actively throttles fuel delivery at these lower thresholds, preventing wet stacking and ensuring optimal diesel consumption at rated load.
Maintenance Strategies and Component Replacement
Maximizing the lifespan of your Cummins QSZ13-G2 industrial generator engine requires strict adherence to the manufacturer's maintenance intervals. Proper fluid management is the first line of defense. Monitoring the QSZ13-G2 engine coolant capacity and ensuring the coolant mixture prevents cavitation will protect the cylinder liners over thousands of operating hours.
The core of the QSZ13-G2 engine maintenance schedule revolves around the fuel system. HPCR fuel system troubleshooting for Cummins QSZ engines often traces back to poor fuel quality. Utilizing genuine water separators and changing fuel filters precisely on schedule is non-negotiable.
When replacing wear parts, relying on a genuine Cummins QSZ13-G2 engine supplier guarantees component integrity. QSZ13-G2 injector replacement should only be performed using OEM parts to maintain the precise spray pattern required by the combustion chamber. For major lifecycle milestones, HekoPower provides comprehensive QSZ13-G2 overhaul parts and common rail maintenance kits, ensuring that your QSZ13-G2 complete engine assembly returns to factory performance standards.
Partnering with an Expert Engine Supplier
Procuring heavy machinery requires a partner who understands the logistics and technical requirements of international distribution. As a dedicated Cummins QSZ13-G2 engine supplier in China, HekoPower bridges the gap between manufacturing and global deployment. We supply the original QSZ13-G2 engine directly to OEMs and end-users, ensuring authenticity and comprehensive warranty support.
Transparency is a core value in our operations. We provide detailed information regarding the QSZ13-G2 400kW engine price, accurate lead times, and comprehensive logistical data. Understanding the exact dimensions and packing weight for QSZ13-G2 export allows our clients to calculate accurate shipping freight and prepare their facilities for installation upon arrival. Whether you require a single Cummins QSZ13-G2 replacement engine or are seeking a Cummins QSZ13-G2 wholesale engine partner for ongoing manufacturing, our team delivers the technical guidance and supply chain reliability your projects demand.
While the QSZ13-G2 is a standout 13.0L engine for 400kW requirements, HekoPower provides comprehensive solutions across the entire Cummins engine family to meet varied power demands.
Cummins QSZ13-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes QSZ13-G2-400KW, QSZ13-G3-450KW. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the Cummins QSZ13-G2 Engine
What emissions standards does the QSZ13-G2 engine meet?
The unit comes tailored to specific target markets as a Cummins QSZ13-G2 Tier 2 / Tier 3 emission engine. This flexibility makes it highly compatible with regions requiring robust performance without complex aftermarket exhaust treatments.
Where can I source authentic replacement parts for the QSZ13 series?
HekoPower supplies complete support parts, spanning from replacement injectors to overhaul gasket kits. Because this is a CCEC Cummins QSZ13-G2 G-Drive engine and DCEC shared platform, main components are readily available across the global Cummins service network.
What is the difference in performance between the 1500 rpm and 1800 rpm configurations?
The QSZ13-G2 1500 rpm engine is configured for 50Hz power grids, outputting exactly 400kW. The QSZ13-G2 1800 rpm engine operates at a higher rotational speed to generate 60Hz power, resulting in a slightly higher mechanical output of 408kW to meet the demands of 60Hz alternators.
What is required for the QSZ13-G2 engine 24V starting system?
The engine requires a robust 24-volt battery bank capable of delivering sufficient cold-cranking amps (CCA). The exact battery sizing depends on the ambient temperature of your installation site to ensure the QSZ13-G2 turbocharged engine turns over efficiently in adverse conditions.
