Details

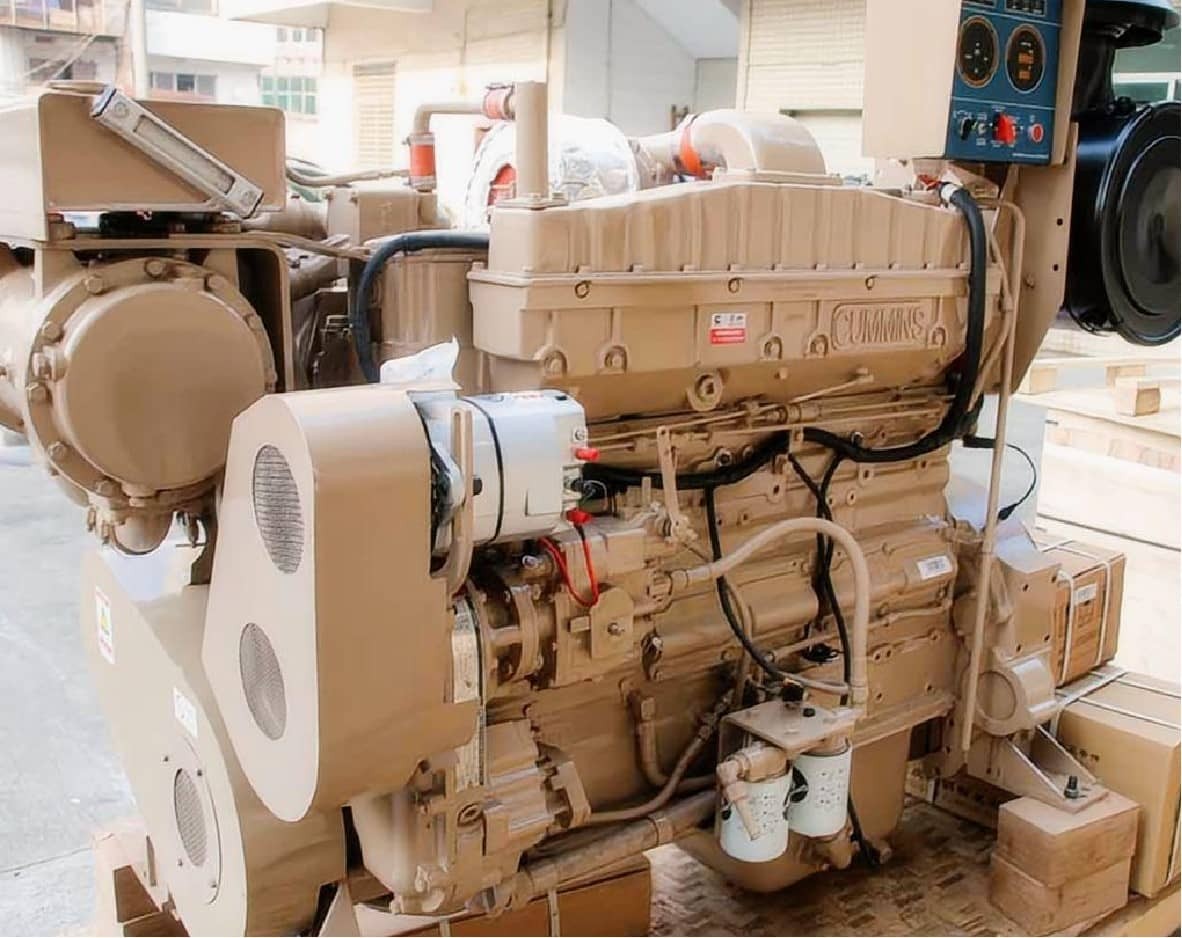

Cummins NTA855-M250 Marine Propulsion Engine
The Cummins NTA855-M250 is a cornerstone in commercial marine power. As a dedicated engine supplier, HekoPower provides this robust 250HP Cummins marine propulsion engine to fleet operators and shipbuilders worldwide. This specific model delivers exactly 187kW of continuous running power at 1800 RPM. Built by Chongqing Cummins (CCEC), the CCEC NTA855-M250 offers unmatched reliability for demanding maritime environments where failure is not an option.
Tech Specs of Cummins NTA855-M250
General Engine Data
Engine Model: Cummins NTA855-M250
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Net Weight (with flywheel & alternator): 1385 Kg
Overall Dimension: 1453mm*947mm*1296mm
Engine Configuration No.: D092347MX02
Key Performance Data
Rated Power: 187 kW/250HP
Rated Speed: 1800 rpm
Low Idle Speed: 575-675 rpm
High Idle Speed: 1962-2106 rpm
Rating Type: Continuous Running Power
Fuel Consumption (Running Speed): ≤ 46 L/hr
More Technical Data
Certification: CCS/IMO Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged/Aftercooled
Compression Radio: 14.5:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V/100AMP)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Real-World Application Scenarios for the NTA855-M250
When selecting a commercial boat engine, operators require specific torque curves that match their hull design and daily workload. The NT855-M250 tugboat engine setup thrives in high-load situations. Tugboats require immense low-end torque to achieve maximum bollard pull. The heavy iron block of this engine provides the necessary mass and rotational inertia to sustain that pulling force without bogging down.
It is also heavily utilized as a 250HP Cummins inboard engine for fishing boats and trawlers. Commercial fishing vessels often drag heavy nets for days at a time. The Cummins NT855-M250 fishing boat engine variant ensures these long hauls are completed efficiently, offering a predictable fuel consumption curve that helps captains accurately calculate their operating costs per voyage.
A barge propulsion engine requires steady, unwavering output. The 14L displacement provides exactly that, pushing heavy cargo through inland waterways against strong river currents. For coastal and inland cargo vessels, this CCS/IMO certified NTA855-M250 main engine guarantees compliance with stringent maritime emissions and safety regulations, ensuring your vessel passes port authority inspections without delay.
Technical Engine Comparisons
Buyers often ask about the specific differences between the NT855-M250 and the closely related M300 model. The primary distinction lies in the fuel delivery calibration and turbocharger tuning, though both share the exact same robust 6-cylinder marine engine block. While the M300 pushes slightly more horsepower, the NT855-M250 prioritizes absolute longevity under grueling continuous duty cycles. It sacrifices a small amount of top-end speed for decades of uninterrupted service life.
Compared to the much larger KTA19 series, the NT855-M250 14L marine engine is significantly more compact. It features a reliable 140 x 152 mm bore and stroke. This smaller footprint allows it to be installed in tighter engine rooms where a KTA19 simply will not fit. Furthermore, the engine configuration D092347MX02 paired with a 14.5 compression ratio gives it unique thermodynamic efficiency. This makes the NT855-M250 187kW marine diesel engine ideal for mid-sized hulls requiring heavy-duty power without the massive weight penalty of a 19-liter block.
Overcoming Common Misconceptions
A frequent misconception in the marine industry surrounds the NT855-M250 PT fuel system. Some modern engineers assume that newer electronic common rail systems are inherently superior in all applications. However, the mechanical PT fuel system is intentionally designed for harsh, remote marine environments. Electronic sensors often fail due to constant exposure to salt, moisture, and engine room heat. The mechanical nature of the PT system means it can be diagnosed and repaired at sea with basic hand tools.
Another common misunderstanding involves the continuous duty rating itself. Many buyers confuse intermittent power with continuous power. A standard automotive or light-commercial engine might advertise 250HP, but it can only sustain that output for a few minutes before overheating. The NT855-M250 continuous duty marine engine is engineered differently. It can run at its absolute maximum 187kW rating 24 hours a day, 365 days a year without reducing its overall lifespan.
Maintenance, Troubleshooting, and Genuine Parts
Proper NT855-M250 marine engine maintenance will easily extend its operational life by decades. The official NT855-M250 maintenance schedule dictates strict intervals for checking the cooling system. Saltwater corrosion is the relentless enemy of any marine engine installation. Captains must routinely inspect the NT855-M250 heat exchanger and replace the sacrificial zinc anodes to prevent internal galvanic corrosion.
If your crew experiences overheating troubleshooting issues, the NT855-M250 seawater pump impeller is almost always the culprit. Debris from shallow waters can strip the rubber impeller blades in seconds. We highly recommend keeping a spare genuine seawater pump on board at all times.
For NT855-M250 low oil pressure troubleshooting, mechanics should first verify the oil viscosity is correct for the climate, and then inspect the oil cooler and main bearings. If you encounter NT855-M250 exhaust smoke troubleshooting, the color of the smoke tells the story. White smoke usually indicates a coolant leak or unburned fuel, while thick black smoke points directly to an issue with the Genuine Cummins NTA855-M250 PT fuel pump or restricted air intake.
Routine NT855-M250 PT fuel pump maintenance prevents the vast majority of fuel system troubleshooting issues. When scheduled rebuilds are eventually necessary, HekoPower serves as your trusted genuine NT855-M250 marine engine supplier in China, providing all necessary NT855-M250 overhaul parts directly from the factory.
Marine Gearbox Matching and Shaft Alignment
A successful marine installation requires exact NT855-M250 gearbox matching. The chosen NT855-M250 marine gearbox must be rated to handle the continuous low-end torque safely. Pairing this engine with an undersized transmission will result in catastrophic gear failure under heavy loads. Proper NT855-M250 propulsion system design also demands precise NT855-M250 shaft alignment. Even a misalignment of a few thousandths of an inch will cause severe vibration, leading to premature main bearing wear and stress fractures in the hull mounting brackets.
Exploring the NTA855 Marine Series
As an established Cummins NT855-M250 supplier, HekoPower ensures you receive the exact engine configuration required for your specific vessel class. Whether you are requesting an NT855-M250 engine quotation, checking the current NT855-M250 engine lead time, or negotiating the Cummins NTA855-M250 marine engine wholesale price for a fleet upgrade, our technical team is ready to assist. We understand that sourcing the right NT855-M250 engine for sale often requires looking at the broader family of propulsion products to ensure a perfect operational match.
Cummins N855-M Series (N855 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes NTA855-M350, NTA855-M400, NTA855-M450, NTA855-M200, NTA855-M220, NTA855-M240, NTA855-M250, NTA855-M270, NTA855-M300. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions (FAQ)
What is the precise power and RPM of the NT855-M250?
This model is factory-calibrated to deliver exactly 187kW, which translates to 250 horsepower. It achieves this maximum output at a steady 1800 RPM, making it highly efficient for turning large, high-pitch propellers.
Is the NT855-M250 truly a continuous duty engine?
Yes, it carries a strict continuous duty rating. This means the engine is mechanically engineered to operate at full throttle, delivering 100% of its rated 187kW power continuously for thousands of hours without requiring a rest period or load reduction.
What is the displacement and how much does the NT855-M250 weigh?
The engine features a 14-liter total displacement across its six cylinders. The dry NT855-M250 engine weight is approximately 1,300 kilograms (2,866 lbs). However, buyers must account for the additional weight of marine gear, fluids, and the cooling system when planning vessel draft and buoyancy.
What gearbox is suitable for the NT855-M250?
The ideal gearbox depends entirely on your vessel's application. Fishing boats often pair this engine with high-ratio reduction gears (such as a 4:1 or 5:1 ratio) from brands like Advance or Hangzhou to turn a massive propeller slowly for maximum thrust.
What fuel system does the NT855-M250 use?
It utilizes the legendary Cummins PT (Pressure-Time) fuel system. This purely mechanical fuel injection system is favored by commercial mariners because it is impervious to electrical failures and can be serviced easily while out on the open water.
