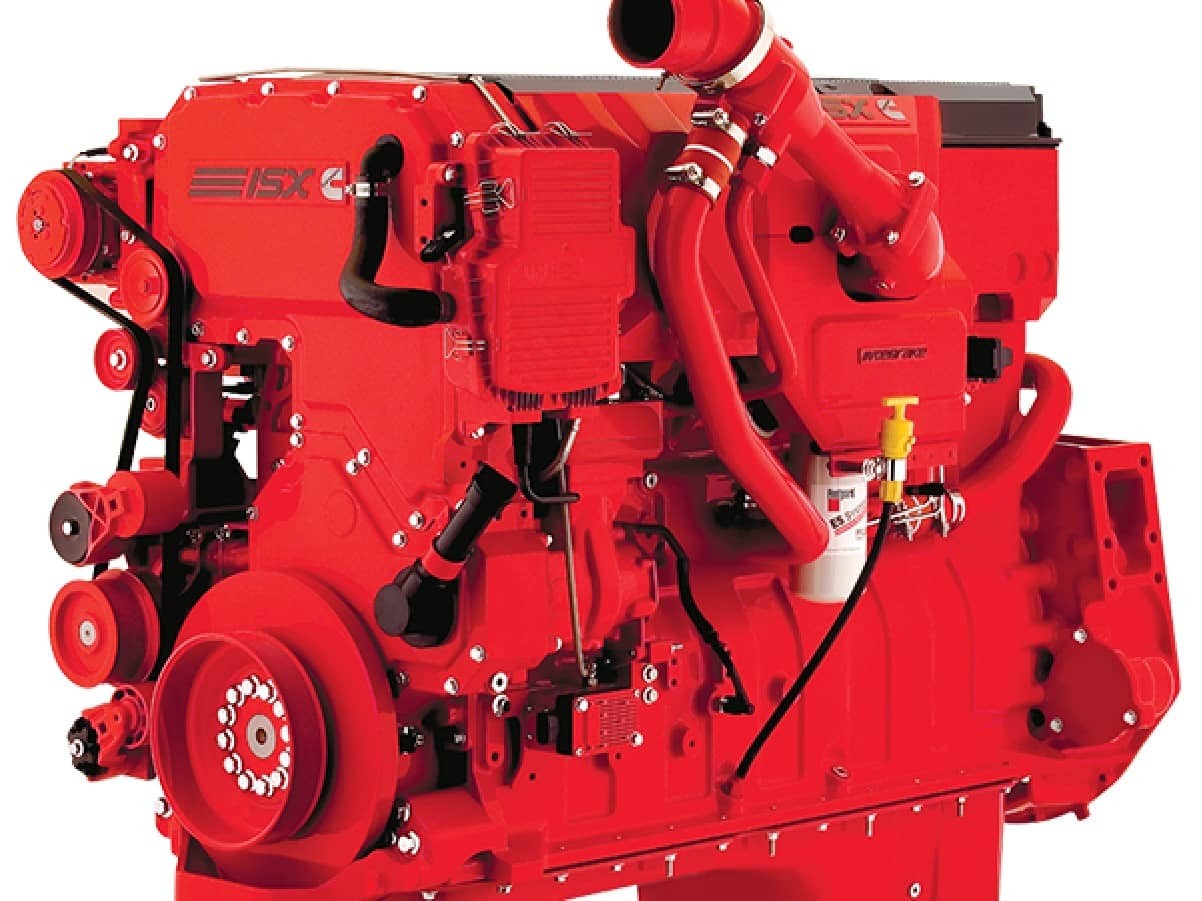

Cummins ISX 525 Engine: High-Output Heavy-Duty Diesel Power Unit
The Cummins ISX-525 Engine is a heavy-duty 15-litre diesel engine developed for demanding commercial transportation, vocational trucks and long-distance logistics. Rated at 525 horsepower (386 kW at 2,000 rpm), it combines strong low-speed torque with dependable fuel efficiency, making it suitable for operators seeking high productivity and reduced operating costs.
Unlike many product pages that only list specifications, it is important to understand that the ISX-525 belongs to the Cummins ISX15 engine platform. This platform is recognised for its electronically controlled fuel delivery, advanced combustion design and robust engine block, allowing reliable performance under continuous heavy loads.
At HekoPower, we supply genuine Cummins ISX-525 complete engine assemblies for customers requiring replacement engines, fleet upgrades and international export projects. Each engine can be supplied according to engine serial number (ESN), CPL number and customer application requirements to help ensure compatibility before shipment.
Tech Specs of Cummins ISX-525
General Engine Data
Engine Model: Cummins ISX 525
Type: 6 Cylinders in Line
Displacement: 15 L
Net Weight (with flywheel & alternator): 1344 Kg
Key Performance Data
Rated Power: 386 kW/525 HP
Rated Speed: 2000 rpm
Max. Torque/Speed: 2237 N.m @ 1200 rpm
Clutch Engagement Torque: 1356 N.m
More Technical Data
Certification: Euro III
Aspiration: Turbocharged/Charge Air Cooled+CEGR
Fuel System: Cummins XPI Fuel System/ECM
Emission Method: DPF/Aftertreatment
Starting System: Electrical Starting Motor 24V
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
The Cummins XPI Fuel System Advantage
Unlike older engine platforms that rely on traditional dual-overhead-cam injection systems, the modern Cummins ISX15 525 HP engine utilizes the proprietary Cummins XPI fuel system. This high-pressure common-rail technology operates independently of engine speed. It delivers multiple precise injection events per cycle at pressures exceeding 30,000 PSI.
For fleet operators, this ultra-fine fuel atomization results in cleaner combustion, quieter operation, and highly optimized Cummins ISX525 fuel consumption rates across volatile RPM bands.
Variable Geometry Turbocharger (VGT) Mechanics
The Cummins ISX525 VGT turbocharger utilizes a sliding nozzle design to continuously alter exhaust gas flow into the turbine wheel. At low engine speeds, the internal vanes adjust to simulate a smaller turbocharger, accelerating throttle response and maximizing low-end torque.
At high operating speeds, the vanes open up to maximize airflow capacity, allowing the platform to sustain its full 525 horsepower rating without risking excessive exhaust backpressure or component overheating.
Factory ECM Configuration and Electronic Parameters
Every Original Cummins ISX525 complete engine supplied by HekoPower features a pre-calibrated Electronic Control Module (ECM). This smart system controls fuel delivery, monitors safety sensors, and communicates with your truck's transmission network.
Our engineers ensure the Cummins ISX525 ECM configuration matches your explicit operating landscape, managing local emissions standards, regional speed governors, and cruise control optimization scripts right out of the box.
Heavy-Duty Vehicle and Industrial Applications
A common pitfall across online parts directories is failing to specify exactly where an engine fits. This creates confusion for purchasing managers. The 525-horsepower tier fills a highly specific niche in regional transport and heavy industrial infrastructure.
Long-Haul Freightliner and Class 8 Truck Integration
The Cummins ISX525 engine for Freightliner trucks is an ideal replacement option for premium Class 8 highway platforms, including the Cascadia and Coronado models. It provides the sustained pulling power needed to maintain highway cruising speeds when pulling maximum gross vehicle weight (GVW) configurations over long distances.
Severe Duty Vocational Applications for Kenworth and Peterbilt
When seeking a Cummins ISX525 engine for Kenworth trucks or a Cummins ISX525 engine for Peterbilt trucks, buyers are typically looking for power to tackle logging, heavy dump operations, or specialized oilfield hauling.
The low-rpm torque rise profile makes it perfect for heavy duty tractor trucks operating in unpredictable off-road terrain, where starting a heavy load on a steep incline requires massive structural durability.
Global Industrial and Stationary Power Unit Use Cases
Beyond standard highway transport, this configuration serves as a rugged Cummins ISX525 power unit for industrial equipment. It is widely used in high-capacity air compressors, industrial wood chippers, aggregate screening plants, and heavy construction equipment where continuous duty cycles require unyielding horsepower.
As an experienced China Cummins ISX525 engine exporter, HekoPower packages these industrial power units to withstand rugged international transport and harsh, remote operating environments.
Repower Solutions, Replacement, and Maintenance Tips
Replacing a heavy-duty engine requires careful logistical and mechanical planning. Fleet managers must evaluate whether to rebuild their existing equipment or purchase a complete pre-assembled system.
Upgrading Lower Horsepower Engines to the 525 HP Tier
A common strategy for fleet operators is to replace a Cummins ISX450 with an ISX525 during a major fleet overhaul. This upgrade improves trip times in mountainous terrain and increases the resale value of the truck.
When executing this upgrade, it is vital to check that your existing cooling package, transmission torque capacity, and driveshaft ratings can handle the increased output. Our technical support team reviews your vehicle's build sheet to ensure a seamless upgrade.
Evaluating Complete Engines vs. Reman Long Blocks
If you are dealing with a catastrophic engine failure, you must choose between a Cummins ISX525 long block replacement and a Cummins ISX525 new engine assembly.
- A long block includes only the core block, crankshaft, pistons, and cylinder head assembly. It requires you to swap over your old, worn fuel systems, turbos, and electronics.
- Choosing a complete assembly from a trusted Cummins ISX525 engine supplier like HekoPower eliminates component swap labor, reduces installation errors, and provides a fresh baseline for all engine subsystems.
Troubleshooting and Preventive Maintenance Guidelines
To maximize the working life of your powertrain, mechanics should prioritize structured preventive maintenance over reactive repairs.
Paying attention to Cummins ISX525 common engine problems, such as early VGT carbon buildup or cooling system pressure drops, can prevent major component failures downstream. Always keep your cooling system clean and use high-quality fuel filters to shield the high-pressure XPI pump from water damage.
HekoPower Global Supply Chain and B2B Logistics
As an established Cummins ISX525 engine manufacturer partner and wholesale supplier, HekoPower manages every step of the international trade process to deliver engines quickly and safely.
Wholesale Fleet Procurement and Production Timelines
We focus on helping commercial truck fleets, independent repair facilities, and parts distributors save money through bulk ordering. Because we maintain strong manufacturing partnerships, our Cummins ISX525 engine wholesale price structures save you significant capital compared to buying from local retail dealerships.
Our standard lead time of around 10 business days means your order enters production and quality testing quickly, helping you get your vehicles back on the road.
Export Controls and Customs Documentation Standards
Shipping heavy machinery across borders requires strict adherence to international trade laws. HekoPower handles all export documentation, commercial invoicing, and bills of lading.
Whether your project requires a Cummins ISX525 Euro engine configuration for European environmental compliance or standard configurations for alternative world markets, we ensure your engine arrives with clear paperwork to avoid costly customs delays.
Global Logistics and Secure Ocean Freight Packaging
Every Cummins ISX engine assembly leaving our facility undergoes strict preservation treatments to prevent rust and corrosion during ocean transport. The engines are bolted to heavy-duty iron or treated wooden skids and sealed inside multi-layer, moisture-resistant polymer wraps before being loaded into standard shipping containers.
We coordinate secure sea, rail, and land transport to deliver your equipment safely to your designated port or facility.
DCEC ISX Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISX 475, ISX 525, ISX 600.
Frequently Asked Questions
What is the exact difference between a standard ISX and an ISX15 engine?
The designation evolved over time. Early generations were called the ISX series, which featured a dual-overhead-camshaft configuration. Later versions were branded as the ISX15 to emphasize the 15-liter displacement while transitioning to a single-overhead-cam design with the XPI common-rail fuel injection system. Both share similar installation footprints.
What explicit warranty coverage comes with a HekoPower engine?
Every complete engine assembly is backed by a standard 12-month factory warranty. This warranty covers major internal components, including the engine block, crankshaft, camshaft, connecting rods, and cylinder head assembly, against manufacturing defects under normal operating conditions.
Can HekoPower verify my engine's configuration using a CPL number?
Yes. Providing a Critical Parts List (CPL) number or an existing engine serial number (ESN) allows our engineering team to cross-reference component layouts. This process ensures the replacement engine matches your vehicle's existing plumbing, wiring harnesses, and mounting points perfectly.
What international payment methods do you accept for engine exports?
To keep bulk transactions secure, we accept standard international payment terms, including Telegraphic Transfer (T/T) and Letters of Credit (L/C). Alternative secure commercial financing options can be reviewed by our sales department during the quoting process.
