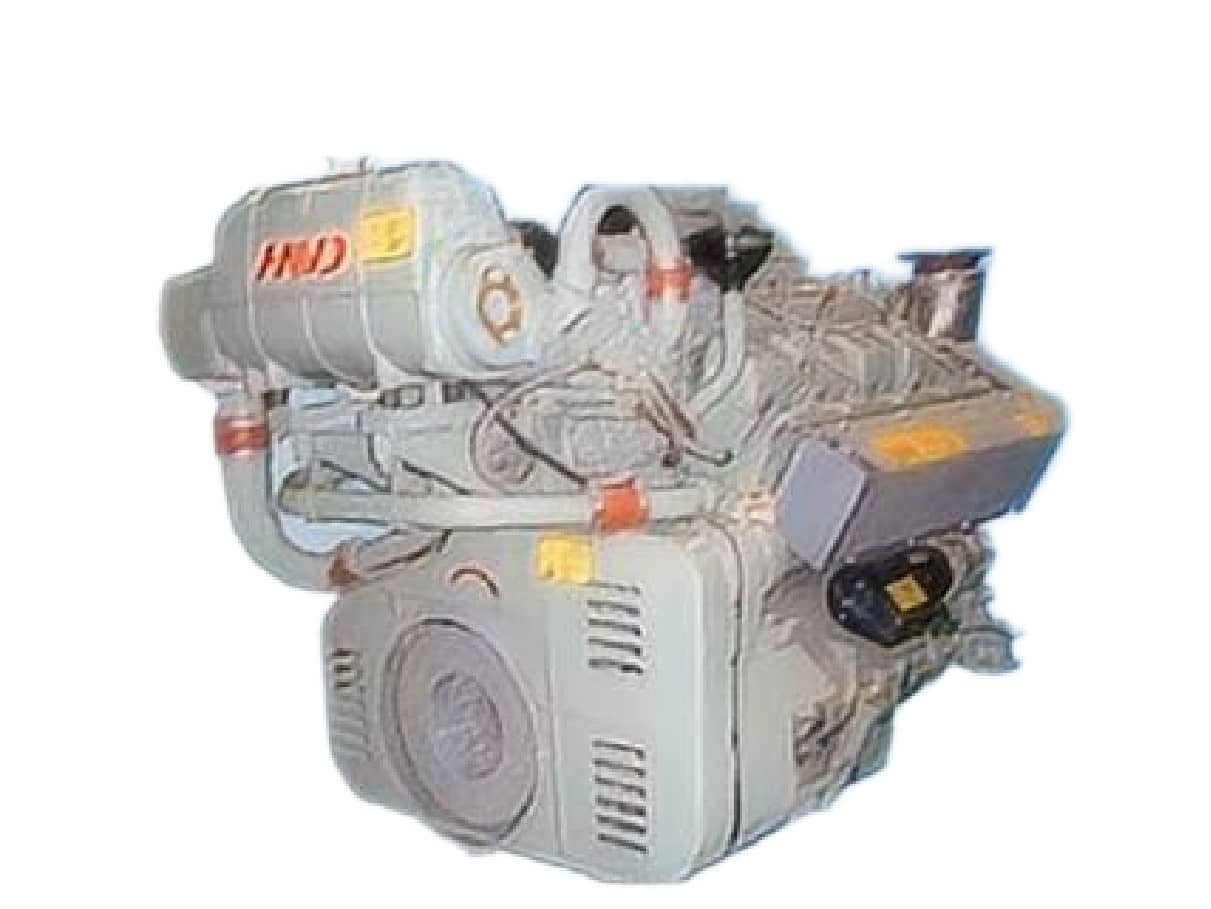

HND Deutz TBD604BL6 540kW Marine Auxiliary Engine
The HND Deutz TBD604BL6 540kW marine engine is an inline 6-cylinder, 4-stroke diesel power plant engineered for heavy-duty marine auxiliary generation and primary power supply. Manufactured by Henan Diesel Engine Plant under official MWM/Deutz technology licensing, this engine delivers high torque density and low operational costs for demanding maritime environments.
HekoPower operates as a direct Deutz TBD604BL6 engine supplier China, delivering factory-tested complete engines, power packs, and genuine spare parts to shipyards and shipowners worldwide. Whether configuring a new vessel build or sourcing a Deutz TBD604BL6 replacement engine supplier, our engineering team provides complete technical integration support.
Tech Specs of Deutz TBD604BL6 540kW Marine Auxiliary Engine
General Engine Data
Engine Model: Deutz TBD604BL6-540KW
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 2550 Kg
Overall Dimension: 2242mm*1143mm*1953mm
Key Performance Data
Rated Power/Speed: 540 kW @ 1800 rpm
Standby Power/Speed: 549 kW @ 1800 rpm
Max. Continuous Running Altitude: 3000 m
Fuel Consumption: 202 g/kW.hr
More Technical Data
Certification: CCS/IMO2 Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 14:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Power Output Type: Continuous
Engineering Comparisons Across Deutz Engine Series
Selecting the right power output requires understanding how the HND Deutz TBD604BL6 compares to adjacent engine models in the same family.
Deutz TBD604BL6 450KW vs 540KW Engine
The Deutz TBD604BL6 450KW vs 540KW engine evaluation comes down to rated speed and application requirements. The 450kW variant typically operates at 1500 RPM for 50Hz electrical grids. The 540kW output utilizes an 1800 RPM calibration with modified turbocharger matching to deliver higher power density for 60Hz vessel grids without increasing overall footprint.
Deutz TBD604BL6 vs TBD604BL5 Generator Engine
In a Deutz TBD604BL6 vs TBD604BL5 generator engine comparison, the BL6 configuration introduces upgraded Electronic Unit Pumps (EUP) and enhanced governor response. The BL6 series provides improved fuel atomization, lower smoke opacity at low speeds, and better transient response when heavy electrical loads engage.
Difference Between Deutz TBD604BL6 and TBD234 Engines
The primary difference between Deutz TBD604BL6 and TBD234 engines involves displacement and structural load capabilities. The TBD604 series features a larger 170 mm bore compared to the TBD234 series' 128 mm bore, providing significantly higher power reserves, lower thermal stress on cylinder components, and an extended service lifecycle.
Real Application Scenarios in Marine & Industrial Duty
The HND Deutz 540kW marine generator engine satisfies rigorous operational standards across marine and land-based environments.
Primary Marine Auxiliary Power
When installed as a TBD604BL6 auxiliary diesel engine, this power plant drives main shipboard alternators on bulk carriers, container vessels, ocean trawlers, and offshore support vessels (OSVs). It handles severe inductive current surges caused by bow thrusters, cargo winches, and heavy refrigeration compressors without frequency instability.
Industrial & Facility Standby Power
Beyond marine applications, the Deutz TBD604BL6 standby generator engine and Deutz TBD604BL6 power plant generator engine serve as reliable emergency power supplies for remote industrial complexes, mining operations, and municipal utilities.
Industrial Prime Power & Microgrids
In a Deutz TBD604BL6 industrial generator application, the engine operates continuously as a Deutz TBD604BL6 prime power generator engine or Deutz TBD604BL6 backup power diesel engine, maintaining stable output in extreme ambient temperatures up to 50°C and altitudes up to 3,000 meters.
Common Misconceptions Regarding the TBD604BL6 Engine
Misconception 1: HND Deutz Engines Are Unlicensed Copies
Henan Diesel Engine Plant (HND) produces the TBD604 series under official license agreements originally established with MWM/Deutz AG. HND uses genuine manufacturing tooling, metallurgy standards, and inspection protocols, guaranteeing parts interchangeability with European-built units.
Misconception 2: You Can Convert a 1500 RPM Engine to 1800 RPM via Speed Adjustment
A Deutz TBD604BL6 1500rpm generator engine cannot be converted to an 1800 RPM 540kW engine simply by adjusting the governor setpoint. The 1800 RPM model utilizes specific turbocharger turbine housings and modified fuel injection timing curves to prevent over-speeding and thermal overloading.
Misconception 3: Standby Ratings Can Be Used for Continuous Shipboard Loads
The Deutz TBD604BL6 540kW power output represents continuous prime power. Running an engine at its 594kW standby limit continuously leads to premature valve wear, high exhaust temperatures, and shortened overhaul intervals.
Maintenance Guidelines & Repowering Recommendations
Proper maintenance preserves engine reliability and extends component service life up to the factory-rated 24,000-hour overhaul threshold.
Routine Maintenance Schedules
- Replace main oil filter elements and centrifugal bypass filters every 250 to 300 operating hours.
- Check fuel injector opening pressures and spray patterns every 1,500 operating hours.
- Inspect the turbocharger shaft play and clean the raw water heat exchanger bundle annually.
Repowering & Engine Replacement Steps
When replacing an aging marine engine with a new unit from a Deutz TBD604BL6 engine supplier China, confirm foundation mounting dimensions, flywheel SAE coupling sizes, and cooling pipe alignment beforehand. Replacing a worn unit with a factory-new Deutz TBD604BL6 engine for sale restores original fuel efficiency and ensures compliance with modern marine emission standards.
Overhaul Kit Sourcing
For major mid-life overhauls, ordering a pre-packaged Deutz TBD604BL6 540kW spare parts overhaul kit reduces downtime. Standard kits include cylinder liners, piston rings, main bearing shells, con-rod bearings, fuel injector nozzles, and a complete engine gasket set.
Deutz TBD604-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD604BL6-450KW, TBD604BL6-540KW, TBD604BL6-550KW, TBD604BL6-600KW.
Frequently Asked Questions
What is the current Henan Diesel Engine Plant TBD604BL6 540kW price?
The Deutz 540KW diesel generator engine price varies based on required classification certificates (CCS, ABS, BV), cooling system configuration, and control panel options. Contact HekoPower directly for current wholesale pricing and delivery schedules.
How do I purchase a CCS certified HND Deutz TBD604BL6 540kW generator engine?
HekoPower supplies factory-tested engines complete with official China Classification Society (CCS) inspection certificates. Contact our sales department with your vessel details to receive a formal commercial quotation.
Where can I obtain an HND TBD604BL6 540kW 60Hz marine generator engine spec sheet?
You can request the full technical datasheet, dimensional drawings, and fuel consumption curves directly from HekoPower by emailing sales@hekopower.com or submitting an inquiry through our website contact form.
