Details

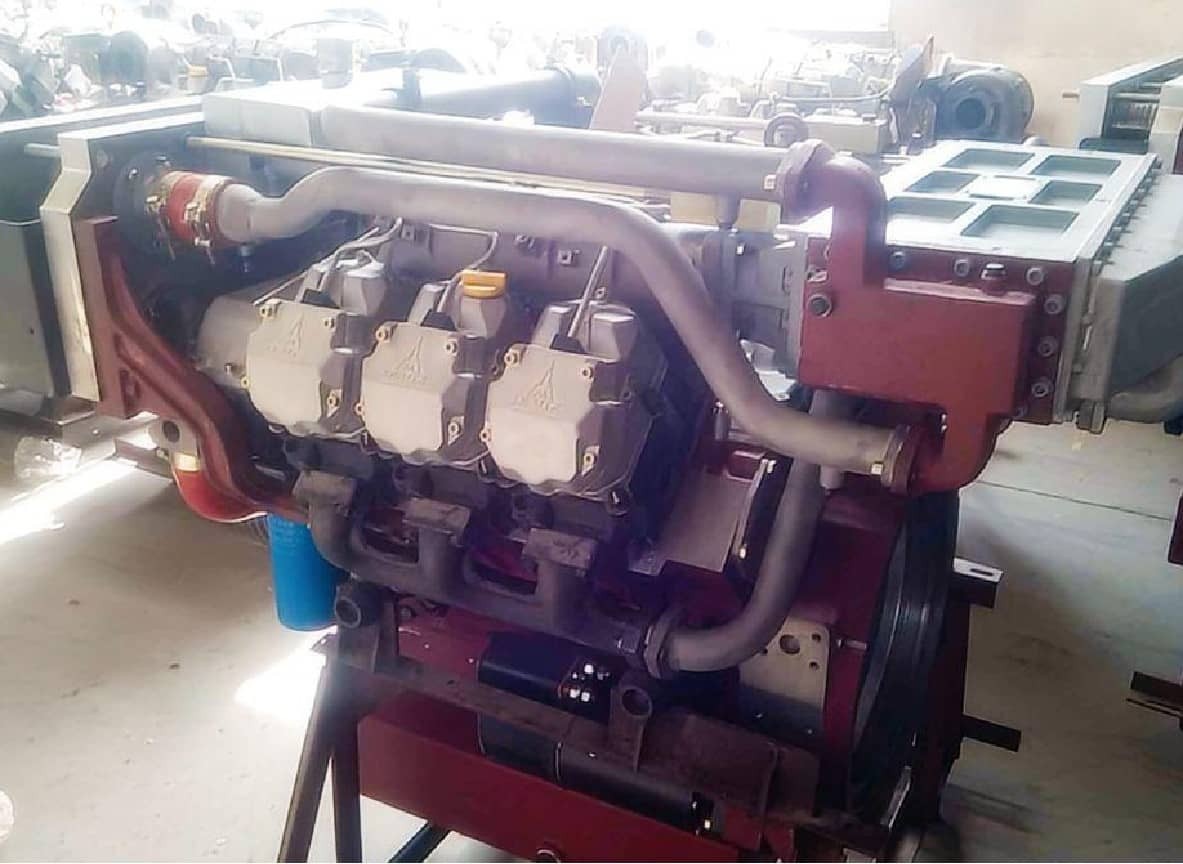

HC6V329/18D
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
HC6V329/18D Marine Engine could be widely used on boats, fishing boats, yachts, motorboats, tug boats, cargo ships, passenger ships, barges, etc.
Technical Specifications
General Engine Data
Engine Model: Deutz HC6V329/18D
Type: 6 Cylinders, V type, 4 stroke
Displacement: 11.906 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1100 Kg
Overall Dimension: 1484mm*1050mm*1468mm
Key Performance Date
Rated Power: 224 kW/329 HP
Rated Speed: 1800 rpm
Low Idle Speed: 550 rpm
Fuel Consumption (Running Speed): ≥ 195 g/kW.h
More Technical Data
Certification: ZY/CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 16.5:1
Starting Method: Electrical Start (28.5V/55A)
Cooling Method: Heatexchanger and Water-air Intercooler
Governor Type: Electronic/Mechanical
Lubricant Capacity: Around 36 L
Flywheel Size/ Housing: 14", SAE1
Running Type: Continuous
Deutz HC6V/D-Marine Auxiliary Series
Deutz HC6V/D-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Huachai Deutz Engine Plant. This series mainly includes HC6V299/15D, HC6V329/15D, HC6V374/15D, HC6V419/15D, HC6V449/15D, HC6V299/18D, HC6V329/18D, HC6V374/18D, HC6V419/18D, HC6V449/18D, HC6V490/18D.
