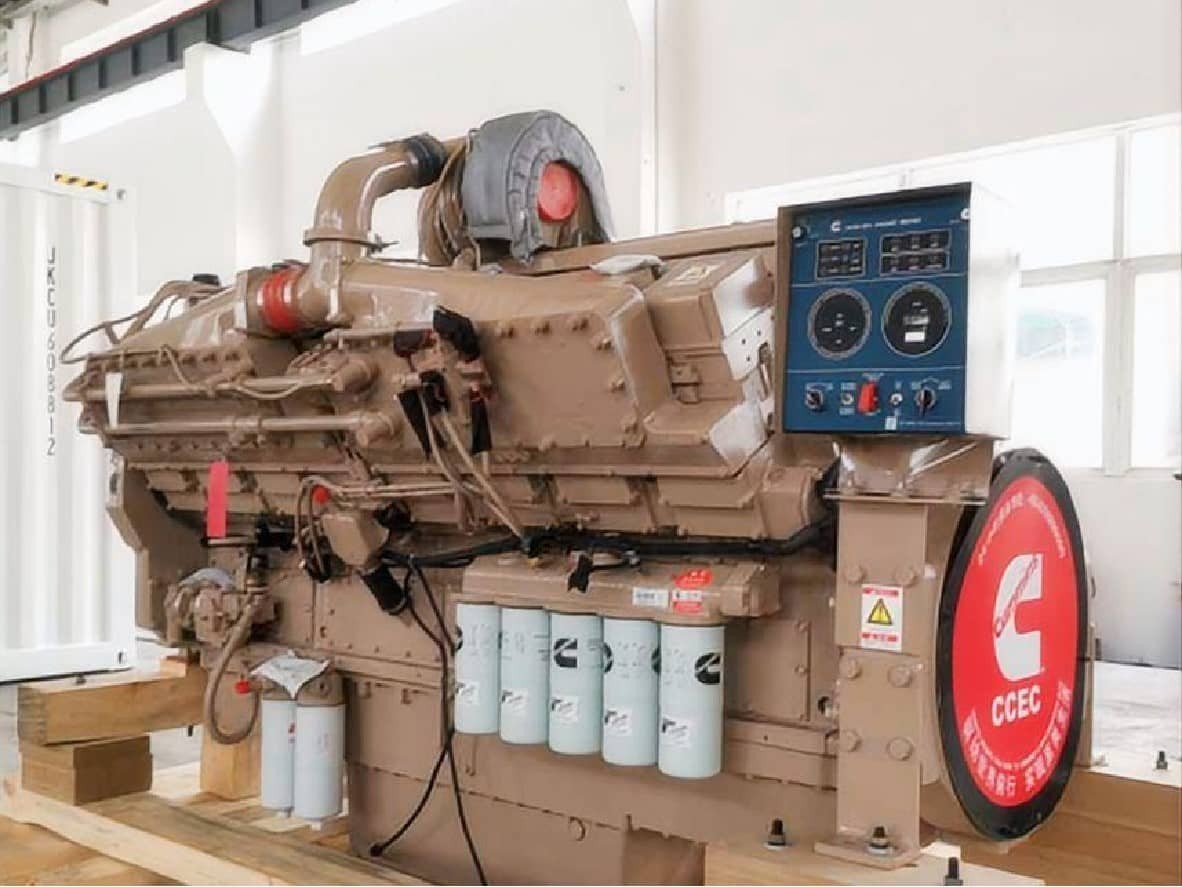

KTA50-M2 (1700 HP)
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
KTA50-M2 (1700 HP) Marine Engine could be widely used on on boats, fishing boats, yachts, motorboats, tug boats, cargo ships, passenger ships, barges, etc. and available for Marine power pack, Marine Gearbox, Propeller, Shaft, etc..
Technical Specifications
General Engine Data
Engine Model: Cummins KTA50-M2 (1700 HP)
Type: 16 Cylinders, V Type, 4 strokes, Diesel
Displacement: 50 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 5742 Kg
Overall Dimension: 2694mm*1564mm*2260mm
Engine Configuration No.: D283033MX02
Key Performance Date
Rated Power: 1268 kW/1700HP
Rated Speed: 1800 rpm
Low Idle Speed: 650±25 rpm
High Idle Speed: 1860-2016 rpm
Rating Type: Heavy Duty
Fuel Consumption (Running Speed): 309.9 L/hr
Rated Engine Torque: 6725 N.m @ 1800 rpm
Torque/Rated Speed: 7020 N.m @ 1500 rpm
More Technical Data
Certification: CCS/IMO2 Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged/Jacket water Aftercooled
Compression Radio: 13.9:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V)
Lowest Starting Temp Without auxiliary system: -12℃
Firing Order: 1R-1L-3R-3L-2R-2L-5R-4L-8R-8L-6R-6L-7R-7L-4R-5L
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Cummins K50-M Series
Cummins K50-M Series (K50 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA50-M2 (1600 HP), KTA50-M2 (1700 HP), KTA50-M2 (1800 HP). All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Fuel System

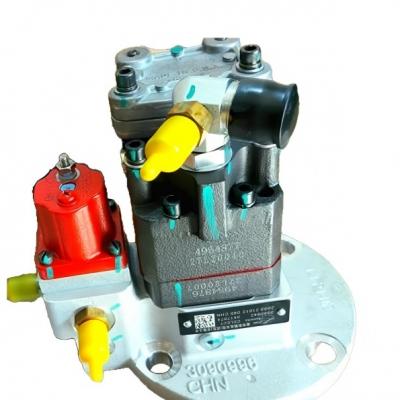

Dependable Cummins PT fuel system can be operated mechanically or with CENTRY electronics for precise engine fueling. Step Timing Control (STC) allows for smooth engine acceleration under load.
Cooling System
Keel cooled or engine mounted plate heat exchanger for reduced installation cost and less maintenance. Spin-on Cummins water treatment filters for protection against cooling system corrosion.
Air System
Marine grade air filters with air inlet restriction indicator. Twin Cummins turbochargers optimized for marine usage.
Engine Design
Low profile for ease of installation and service. Replaceable wet cylinder liners offer longer life and lower rebuild cost. Gallery cooled pistons for maximum durability.
Lubrication System
Standard (151 L [40 gal]) or high capacity (185 L [49 gal]) marine grade oil pan. Cummins spin-on oil filter cartridge available handed for simplified service.
Certifications
Complies with IMO Tier II emissions regulations. Certificates of compliance are available from the U.S. EPA and Lloyd’s Register of Shipping. Consult your local Cummins professional for a complete listing of current marine agency approvals for this engine.
Electrical System
24-volt standard electrical system with 12-volt option available. Marine grade wiring harness.
Exhaust System
Dry exhaust manifold with water shielding for reduced fuel consumption and improved performance.
