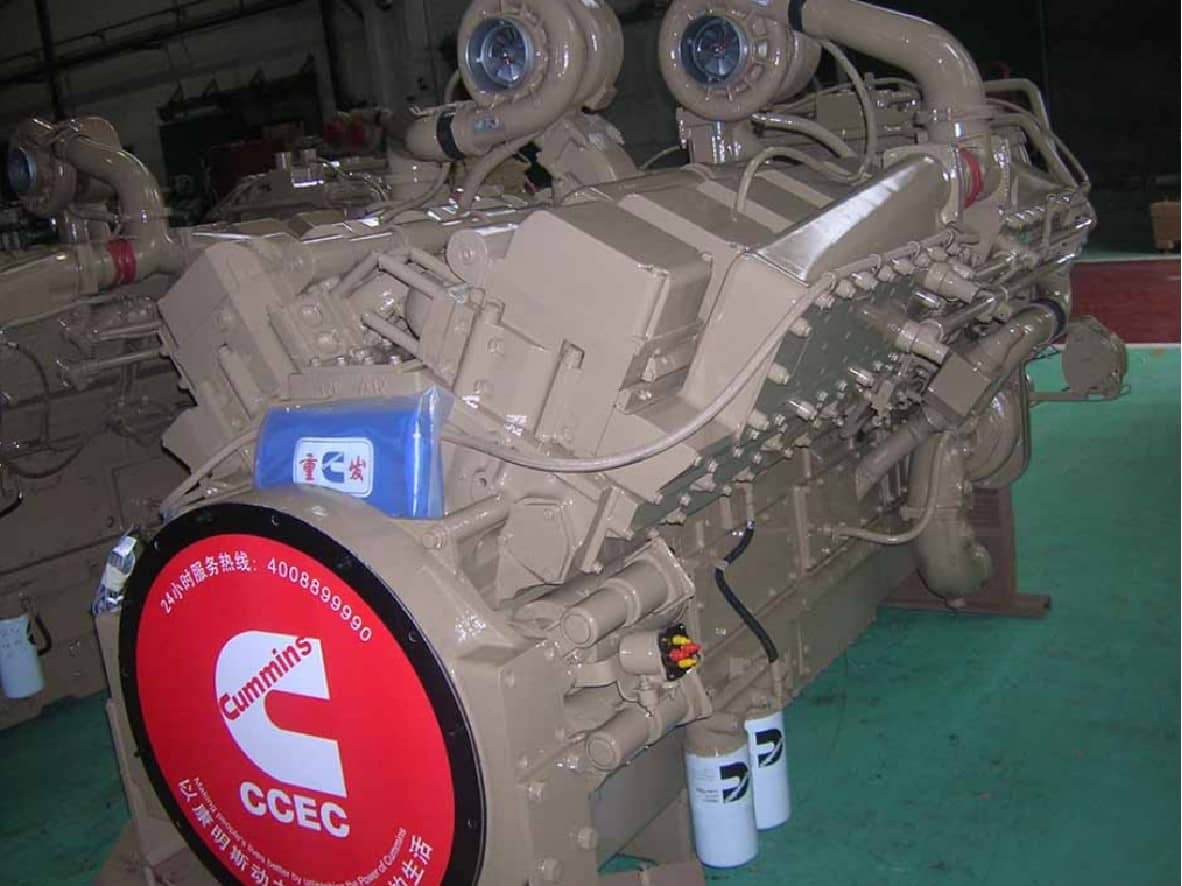

CCEC Cummins KTA50-G9 Wholesale: 1384 kW Generator Drive Diesel Engine
The Cummins KTA50-G9 is a premier heavy duty genset engine engineered for large-scale power infrastructure. As an established export supplier from China, Hekopower provides the genuine CCEC Cummins KTA50-G9 50L V16 diesel engine configured specifically for heavy industrial applications.
This turbocharged aftercooled KTA50-G9 engine features a displacement of 50.3 liters. It utilizes a reliable mechanical PT fuel system to deliver maximum uptime with minimal technical complexity. Whether configuring a Cummins KTA50-G9 60Hz engine assembly for emergency backup or continuous duty operation, this engine provides the necessary thermal efficiency and structural durability.
1800rpm V16 Configuration for Stable 60Hz Output
The 1800rpm configuration is optimized for 60Hz generator applications commonly used in North America, parts of Asia, and various international industrial projects.
Its V16 cylinder arrangement contributes to smoother operation under high electrical loads. In practical operation, many power station operators prefer this platform because it combines high output with mature mechanical reliability.
Tech Specs of Cummins KTA50-G9
General Engine Data
Engine Model: Cummins KTA50-G9-1384KW
Type: 16 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 5662 Kg
Overall Dimension: 2978mm*2080mm*1780mm
Key Performance Data
Rated Power, Standby Output: 1384 kW/1855HP, 1656 kW/2220HP
Rated Speed: 1500 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 330 L/Kw.h
Continuous Output/Speed: 1224 kW/1640HP @ 1800 rpm
More Technical Data
Engine Exhaust Manifold: Dry Exhaust Manifold
Aspiration: Turbocharged and Aftercooled
Compression Radio: 13.9:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water Cooled, 1 pump or 2 pumps/2 loops
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control, ≤ 5%
Technical Advantages of the Cummins KTA50-G9
Industrial buyers must understand how the engine balances fuel consumption against thermal loads under various operating conditions.
Cummins KTA50-G9 Prime vs Standby Power Rating
The CCEC KTA50-G9 serves two distinct operational profiles depending on your facility design. For the Cummins KTA50-G9 standby power application, the engine achieves its maximum output of 1384 kW at 1800rpm. This rating is optimized for short-duration emergency utility outages.
For a Cummins KTA50-G9 prime power engine setup, the continuous rating is calibrated at 1227 kW at 1800rpm. The prime power specification allows for unbounded annual running hours with a variable load profile. Understanding this distinction prevents premature component wear and protects factory warranties during critical deployments.
Cummins KTA50-G9 Fuel Consumption Data
Operating efficiency directly influences total cost of ownership. The 1384kW Cummins diesel generator engine balances its massive V16 footprint with a highly optimized injection curve.
At 1800rpm, the 1384kW Cummins engine fuel consumption at 100% load sits at approximately 315 liters per hour (83.2 gallons per hour). When dialed back to 75% prime load, consumption drops to roughly 241 liters per hour. This profile makes it a highly competitive, low fuel consumption engine within the 1200kW to 1400kW generator drive sector.
Thermal Efficiency and Cooling System Configuration
Managing the heat rejection of a 50-liter V16 engine requires precise auxiliary planning. The Cummins KTA50-G9 cooling system configuration demands a high-capacity radiator capable of handling both jacket water heat and aftercooler heat loads.
The dual-loop cooling path ensures that the intake air temperature remains low after passing through the turbochargers. This design optimizes combustion efficiency and minimizes exhaust gas temperatures during extended runs at peak standby capacity.
Maintenance, Troubleshooting & Component Upgrades
Long-term reliability rests entirely on preventative maintenance and utilizing the correct parts configurations.
Buy Genuine Cummins KTA50-G9 with CPL 2533
When coordinating a Cummins KTA50-G9 OEM replacement engine project, referencing the Control Parts List (CPL) is mandatory. Hekopower supplies this engine with standard industrial configurations, frequently matching CPL 2533 or CPL 2527.
Verifying the CPL ensures that structural sub-assemblies, turbocharger models, and internal piston geometries match your existing generator set integration. This precise targeting avoids compatibility errors during field drop-ins.
Managing the Cummins KTA50-G9 PT Fuel System
The defining characteristic of the Cummins V16 industrial generator engine is its proprietary Pressure-Time (PT) fuel system. Unlike modern common-rail electronic systems that are highly sensitive to fuel purity, the mechanical PT system uses a gear pump to pressurize fuel before it enters the cam-actuated injectors.
Regular maintenance requires inspecting the fuel pump seals and replacing the fuel filters every 250 operating hours. If the engine experiences RPM hunting, technicians should inspect the mechanical governor weights and check for air aeration within the low-pressure supply lines.
Real-World Application Scenarios for the V16 Platform
The structural rigidity of the KTA50 platform makes it suitable for diverse, high-stakes industrial environments globally.
Cummins KTA50-G9 for Data Center Backup Power
Data infrastructure demands zero-tolerance availability. The KTA50-G9 diesel engine for data center backup power is a industry standard due to its rapid starting capability.
The heavy-duty starter motors and high-amperage charging alternators allow the engine to achieve stable voltage and frequency lock within 10 seconds of a grid failure event. This instant response secures critical server loads before uninterruptible power supply (UPS) batteries deplete.
Heavy Mining and Oilfield Generator Implementations
Remote resource extraction requires rugged equipment. The Cummins KTA50-G9 for mining power station setups operates reliably in high-altitude, dusty environments.
Similarly, the Cummins KTA50-G9 for oilfield generators is built to withstand fluctuating electrical loads caused by heavy drilling mud pumps and top drives. The rigid cast-iron block reduces structural vibration, extending the lifespan of neighboring electronic control panels.
Critical Facilities and Infrastructure Deployment
The V16 configuration is trusted worldwide across public and private infrastructure sectors. Common deployments include:
- Cummins KTA50-G9 for hospital standby power: Safeguards life-support networks and climate systems.
- Cummins KTA50-G9 for industrial facilities: Eliminates financial losses from sudden manufacturing line halts.
- Cummins KTA50-G9 for telecom backup systems: Drives regional communication hubs during grid collapses.
- Cummins KTA50-G9 for containerized power station installations: Provides modular, mobile power for remote construction sites.
Commercial Procurement, Logistics & Global Delivery
Purchasing an engine of this scale involves detailed coordination regarding supply chains, customization, and secure shipping networks.
CCEC Chongqing KTA50-G9 Engine Lead Time and Shipping
As an authorized engine wholesaler, Hekopower minimizes procurement delays. The standard CCEC Chongqing KTA50-G9 engine lead time and shipping window varies between 15 to 45 days depending on exact customization options, such as tailored control panels or specialized radiators.
Every engine undergoes rigorous dyno-testing at the factory prior to export. We handle all seaworthy packaging, utilizing reinforced iron-frame wooden cases to guarantee rust-free ocean freight delivery.
Cummins KTA50-G9 Bulk Procurement Options
Hekopower supports global engineering firms and generator OEMs with a structured Cummins KTA50-G9 bulk procurement framework. Whether you require a single Cummins KTA50-G9 engine supplier partnership or multiple units for a multi-megawatt power station project, we provide direct wholesale pricing. Our direct connection to CCEC production lines ensures clear origin tracking and complete component certification.
Cummins K50-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA50-G3-1097KW, KTA50-G3-1220KW, KTA50-G8-1200KW, KTA50-GS8-1287KW, KTA50-G9-1384KW, KTA50-G15-1400KW.
Frequently Asked Questions
What is the origin of the Hekopower Cummins KTA50-G9 engine?
Our KTA50-G9 engines are manufactured by CCEC (Chongqing Cummins Engine Co., Ltd.) in China. This joint-venture manufacturing facility follows the exact global engineering standards established by Cummins Inc., ensuring global parts compatibility and identical performance metrics.
Is the KTA50-G9 suitable for continuous-duty operation?
Yes. The engine is widely used in prime power and industrial continuous-operation environments.
Can this engine be modified for a marine auxiliary configuration?
The Cummins KTA50-G9 is specifically a generator-drive engine designed for land-based power applications. For marine auxiliary setups, minor configuration changes relating to water-cooled exhaust manifolds and specialized marine certifications are required. Please submit a specific Cummins KTA50 G9 1800rpm marine or industrial configuration inquiry to our engineering team for validation.
What accessories are included in a standard Hekopower quotation request?
A standard factory-direct Cummins KTA50-G9 package includes the core engine block, the PT fuel injection system, twin turbochargers, charging alternators, starter motors, and dry-type air cleaners. Auxiliary systems like heavy-duty radiators, custom control panels, and residential silencers can be integrated into your custom quotation request.
Can the engine operate in high-temperature regions?
Yes. With proper cooling system configuration, the engine can operate in demanding ambient conditions.
How does Hekopower guarantee global delivery and support?
We act as an experienced Cummins KTA50-G9 global delivery supplier. We manage all export documentation, customs clearance parameters, and maritime logistics from major Chinese ports. Because these units are genuine Cummins designs, replacement parts like filters, gaskets, and injectors can be sourced through any local Cummins distribution network worldwide.
