Details

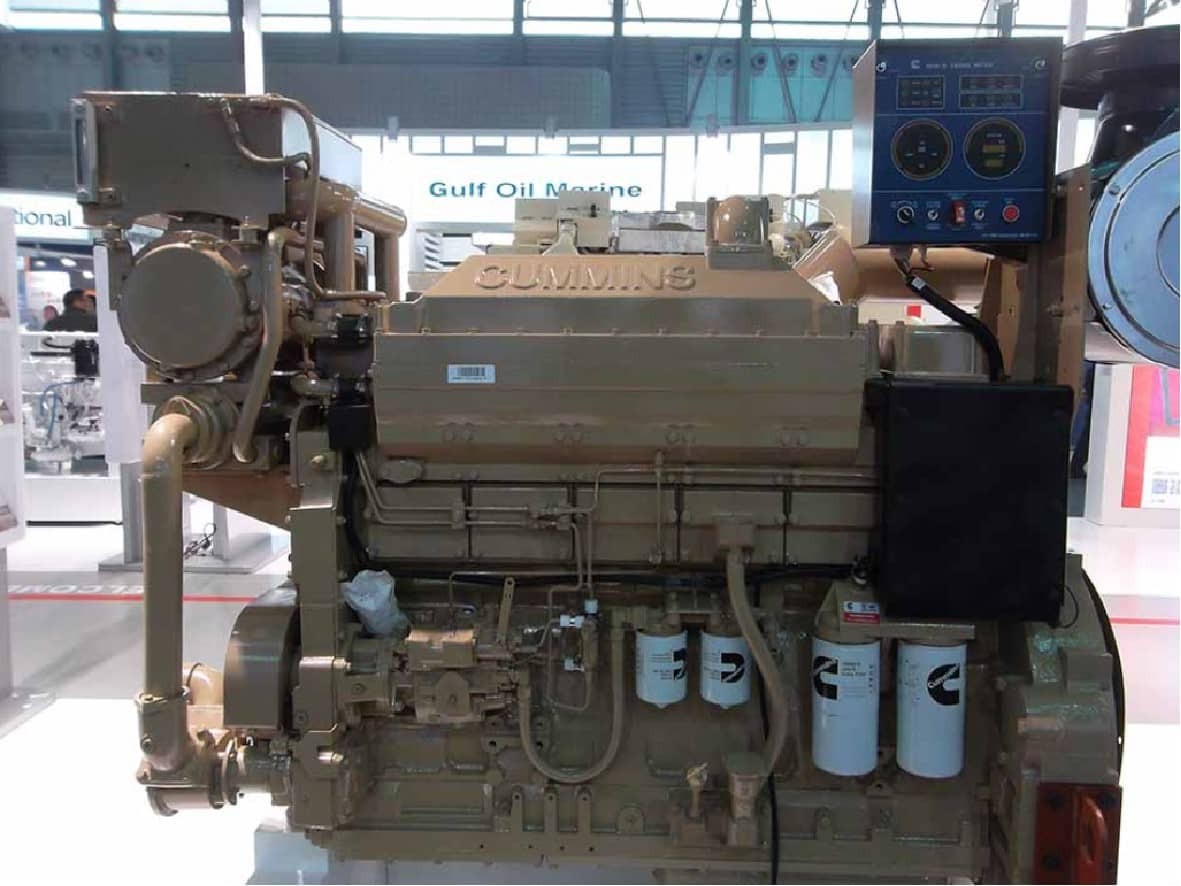

KTA19-M3 (640 HP)
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
KTA19-M3 (640 HP) Marine Engine could be widely used on on boats, fishing boats, yachts, motorboats, tug boats, cargo ships, passenger ships, barges, etc. and available for Marine power pack, Marine Gearbox, Propeller, Shaft, etc..
Technical Specifications
General Engine Data
Engine Model: Cummins KTA19-M3 (640 HP)
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 2251 Kg
Overall Dimension: 1666mm*874mm*1377mm
Engine Configuration No.: D193080MX02
Key Performance Date
Rated Power: 477 kW/640HP
Rated Speed: 1800 rpm
Low Idle Speed: 650±25 rpm
High Idle Speed: 1815-2016 rpm
Rating Type: Continuous Duty
Fuel Consumption (Running Speed): 119.9 L/hr
Max Torque/Speed: 2830 N.m @ 1400 rpm
More Technical Data
Certification: CCS/IMO Certificates
Governor Type: Mechanical Control
Aspiration: Turbocharged
Compression Radio: 13.8:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical Start (24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Cummins K19-M Series
Cummins K19-M Series (K19 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT19-M425, KTA19-M470, KTA19-M500, KTA19-M550, KTA19-M3 (500 HP), KTA19-M3 (600 HP), KTA19-M3 (640 HP), KTA19-M4 (700 HP). All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Fuel System
Dependable Cummins PT fuel system precise engine fueling. Step Timing Control (STC) allows for smooth engine acceleration under load. Premium fuel injectors utilize ceramic components for increased durability.
Cooling System
Keel cooled or engine mounted heat exchanger system available. Spin-on Cummins water treatment filters for protection against cooling system corrosion.
Air System
Holset HX80 turbochargers optimized for marine applications. Mass flow pump, aftercooling for efficient operation and optimization of performance.
Engine Design
Robust engine block designed for continuous duty operation and long life. Metric 0-ring seals and edge molded gaskets eliminate fluid leaks. Full power take-off available from front of crankshaft. Aluminum single-piece piston design with hardened liners and nitride coated rings for exceptional durability.
Lubrication System
Marine grade steel or cast aluminum lube oil pan (37 L [9.7 gal]). Cummins spin-on oil filters handed available for simplified service.
Certifications
Emissions compliant to IMO Annex VI of MARPOL 73/78 guidelines. Certifications available from the CCS Register.
Electrical System
24 volt standard electrical system.
Exhaust System
Water cooled exhaust manifold reduces emissions and cools engine surface temperature.
