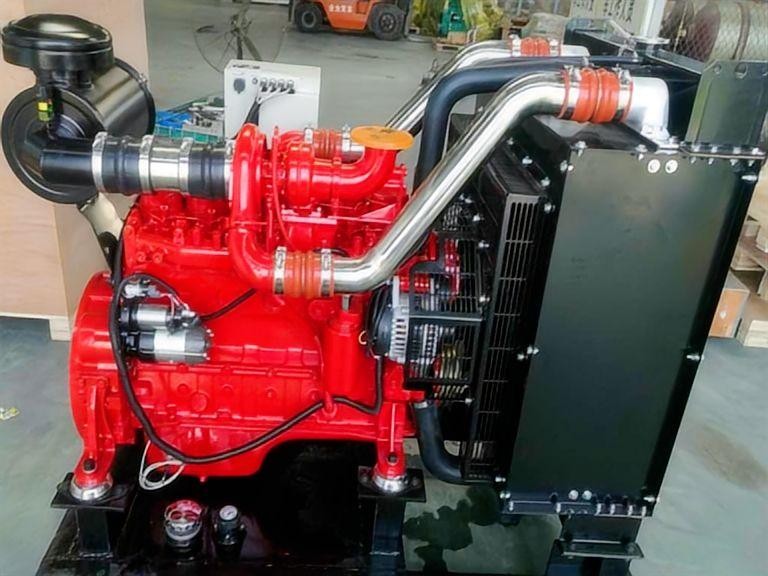

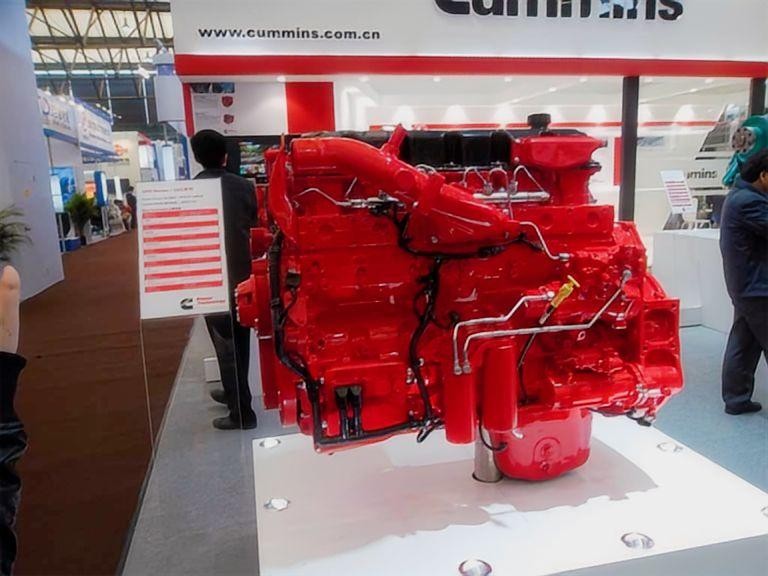

Genuine Cummins 6ZTAA13-G4 400kW Generator Engine for Sale
Sourcing a reliable 400kW standby power engine requires a balance of mechanical durability, precise fuel delivery, and proven thermal efficiency. As an authorized commercial engine supplier, HekoPower provides the genuine Cummins 6ZTAA13-G4 G-Drive engine directly to global generator packagers and industrial end-users. This heavy-duty 13L Cummins diesel generator engine is engineered specifically to handle transient block loads while maintaining tight frequency control, making it a globally trusted configuration for critical prime and standby applications.
Tech Specs of Cummins 6ZTAA13-G4
General Engine Data
Engine Model: Cummins 6ZTAA13-G4-400KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 13 L
Bore * Stroke: 130 * 163
Net Weight: 1195 Kg
Overall Dimension: 2180mm*1360mm*1605mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 400 kW/537HP, 415 kW/557HP
Continuous Output/Speed (1500 rpm): 350 kW/470HP @ 1500 rpm
Rated Power/Standby Power(1800 rpm): 400 kW/537HP, 415 kW/557HP
Continuous Output/Speed (1800 rpm): 350 kW/470HP @ 1800 rpm
Rated Speed: 1500/1800 rpm
Low Idle Speed: 800-1000 rpm
Fuel Consumption @ Running: ≤ 235 g/kW.h
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC PD Pump/ GAC Governor
Electrical System (Starter Motor/Alternator): 24V/900CCA
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Governor Type: Electronic, Regulation ≤3%
Compression Ratio: 17:1
Technical Architecture and Engineering Comparisons
DCEC 6ZTAA13-G4 vs 6ZTAA13-G3: Power Node Differences
Selecting the correct 13L Cummins generator engine 1500RPM variant requires looking closely at real power capacities. While both engines share the identical 13-liter mechanical block architecture, the Cummins 6ZTAA13-G4 industrial diesel engine is optimized for a higher thermal ceiling and aggressive fuel mapping. The 6ZTAA13-G3 model tops out at a lower kilowatt rating, whereas the G4 variant delivers a true 400kW standby power output at 1500 RPM (50Hz configuration). This extra capacity is achieved via an uprated turbocharger profile and a modified fuel injection delivery curve, allowing the engine to handle sharp, sudden load increases without dropping critical engine RPM.
Cummins 6ZTAA13-G4 vs QSZ13-G3: Mechanical Fueling vs Full Electronic Control
Engineering teams frequently debate the merits of a 400kW Cummins engine comparison, specifically evaluating the 6ZTAA13-G4 against the QSZ13-G3. The primary differentiator lies in the fuel system architecture and electronic management systems. The QSZ13 utilizes full electronic high-pressure common-rail integration, which offers marginal gains in emission profiles but introduces electronic complexity.
Conversely, the 6ZTAA13-G4 balances mechanical reliability with modern electronic oversight. It pairs a robust high-pressure mechanical injection pump with a highly responsive electronic governor system. This specific engineering choice delivers the fuel tolerance and field-serviceability of a classic mechanical engine, combined with the precise frequency regulations needed to safeguard sensitive digital hardware during power grid failures.
Cummins G-Drive Engine Fuel Efficiency and Performance Profiles
Long-term operational expenditure is dictated directly by thermodynamic efficiency. The Cummins 6ZTAA13-G4 turbocharged aftercooled engine achieves an optimal fuel-to-kilowatt conversion ratio by utilizing an advanced wastegate turbocharger system alongside air-to-air charge cooling. This configuration forces cool, dense air into the combustion chambers, ensuring uniform fuel burn across all six cylinders.
The 13L Cummins diesel generator engine design minimizes parasitic parasitic power losses from internal friction and cooling fan drag. When plotting the Cummins G-drive engine fuel efficiency comparison curve, the G4 engine demonstrates a flat consumption profile across the vital 50% to 100% load range, preventing fuel wasting during partial-load operations.
Genset Engineering and Alternator Integration Guide
400kW Genset Coupling with Cummins 6ZTAA13-G4 Requirements
Building a reliable power platform requires a flawless mechanical connection between the flywheel assembly and the alternator rotor. A standard 400kW genset coupling with Cummins 6ZTAA13-G4 requires strict adherence to SAE dimensions. The engine housing uses a standard SAE 1 flange configuration with an SAE 14 flywheel match. During integration, technicians must use dial indicators to verify axial and radial alignment. Misalignment exceeding 0.05mm introduces destructive torsional vibrations that can deform the crankshaft bearings and trigger early equipment breakdown.
Stamford Alternator Compatibility and System Matching
For an optimal electrical architecture, we recommend pairing this engine with a Stamford S4L1D-F41 or identical alternator frame. Ensuring precise Stamford alternator compatibility with 6ZTAA13-G4 engines ensures that the mechanical torque curve matches the electromagnetic reactance of the generator. This specific configuration is perfectly rated to construct a highly efficient Cummins diesel engine for 500kVA generator packages. This power band provides robust motor-starting capabilities and clean sine wave production under non-linear industrial loads.
Radiator Selection and Cooling Package Integration Parameters
Thermal rejection dictates continuous operational runtime. The integrated Cummins 6ZTAA13-G4 radiator and cooling package must be sized to reject heat under extreme ambient restrictions. Industrial packagers must account for the engine's jacket water heat rejection and charge-air cooler requirements simultaneously. The cooling loop requires an expansion tank setup with a pressure-rated cap to stop localized boiling. Air duct restriction across the radiator core must not exceed 0.12 kPa, ensuring the engine can run indefinitely at maximum capacity without entering thermal de-rate conditions.
Application Engineering and Real-World Deployment
Mission-Critical Standby Power for Data Centers and Healthcare Facilities
In modern data architecture, a power interruption lasting only milliseconds can corrupt millions of transactions. The 400kW Cummins standby power engine provides the high transient response required to power uninterruptible power supply (UPS) systems back up. Similarly, as a standby power diesel engine for hospitals, this block satisfies strict regulatory compliance mandates for emergency start times, reaching full rated voltage and stabilizing frequency within seconds of a primary mains failure.
Industrial Infrastructure, Mining, and Telecom Power Systems
Remote operational environments require equipment that can tolerate challenging fuel quality and harsh environmental elements. In off-grid operations, this unit serves as a robust mining generator drive diesel engine, handling the heavy inductive loads of ventilation fans, crushers, and deep-well pumps. For communications infrastructure, it operates efficiently as a diesel engine for telecom generator system setups, providing long continuous runtime profiles in extreme heat or high altitude environments where primary grid expansion is impossible.
Preventative Maintenance and Lifecycle Engineering
6ZTAA13-G4 Engine Governor GAC Settings and Idle Adjustments
Stable frequency output depends on the fine calibration of the engine's speed control network. The 6ZTAA13-G4 engine governor GAC settings must be adjusted to eliminate speed hunting under sudden load drops. Technicians can adjust the gain and stability potentiometers on the electronic control module to achieve an instantaneous transient response. Correct setting of the DCEC 6ZTAA13-G4 low idle speed adjustment—typically calibrated between 700 and 750 RPM—safeguards the valvetrain and maintains optimal initial oil pressure before the engine ramps up to its operational 1500 RPM speed profile.
Fuel Injection Pump Serviceability and Field Replacement
The mechanical core of the fuel system relies on an inline injection pump built to withstand varied commercial diesel standards. Over extended service lifecycles, executing a timely Cummins 6ZTAA13-G4 fuel injection pump replacement is critical to restoring factory-spec fuel atomization. When performing this service, mechanical timing marks on the engine gear housing must align perfectly with the pump hub marker. Minor timing deviations alter injection windows, which can cause exhaust smoke, elevated fuel consumption, and higher exhaust gas temperatures.
Fuel Injection Pump Serviceability and Field Replacement
The mechanical core of the fuel system relies on an inline injection pump built to withstand varied commercial diesel standards. Over extended service lifecycles, executing a timely Cummins 6ZTAA13-G4 fuel injection pump replacement is critical to restoring factory-spec fuel atomization. When performing this service, mechanical timing marks on the engine gear housing must align perfectly with the pump hub marker. Minor timing deviations alter injection windows, which can cause exhaust smoke, elevated fuel consumption, and higher exhaust gas temperatures.
Consumable Selection: Oil Filter and Maintenance Kit Specifications
Using sub-standard filtration components reduces total engine service life. Protecting the internal components of this engine requires using a validated oil filter and maintenance kit for Cummins 13L engine applications. The lubrication system relies on high-efficiency combination full-flow and bypass filtration to trap sub-micron soot particles. Scheduled replacement of fuel-water separators, secondary fuel elements, and air filters at 250-hour operational intervals protects the close-tolerance internal surfaces from abrasive wear and fuel contamination.
Commercial Sourcing and Wholesale Distribution Infrastructure
Factory Direct Cummins 6ZTAA13-G4 Sourcing and Pricing Structure
Navigating the global supply chain for industrial equipment requires transparent trade data. When you source an original DCEC 6ZTAA13-G4 distributor model through HekoPower, you bypass multi-tier broker markups. Our direct alignment with manufacturing hubs allows us to offer a highly competitive China factory price for 400kW Cummins drive engine builds without compromising component authenticity. We establish clear commercial tiers based on order volume, providing scalable margins for international genset OEMs and fleet maintenance contractors.
Cummins Generator Engine Lead Time, Packaging, and Global Export Logistics
Industrial downtime is financially punitive. We manage a strict logistical pipeline to keep our Cummins generator engine lead time to an absolute minimum. Standard export configurations are held in rolling inventory to accelerate dispatch schedules. Every Cummins 6ZTAA13-G4 shipping dimensions and gross weight calculation is pre-validated for standard container freight. Units are treated with anti-corrosion inhibitors, wrapped in heavy-gauge VCI moisture barriers, and secured in export-grade seaworthy wooden cases to ensure transit integrity to any international port.
For large-scale infrastructure projects, our logistical team coordinates multi-unit shipments with comprehensive customs documentation. We handle export clearance protocols efficiently, ensuring that your technical teams receive the machinery on-site precisely when scheduled, accompanied by all factory-issued certification and testing logs.
Cummins 6Z13-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6ZTAA13-G2-390KW, 6ZTAA13-G3-340KW, 6ZTAA13-G4-400KW. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the Cummins 6ZTAA13-G4
What is the verified Cummins 6ZTAA13-G4 fuel consumption rate at 100% prime power?
At a full 100% prime power load profile under international standard operating conditions, the engine consumes approximately 99 to 102 liters of diesel fuel per hour. This highly efficient consumption rate is maintained by the mechanical injection system and its integrated electronic governor controls.
Can this engine run continuously for prime power applications rather than standby duty?
Yes. While optimized as a 400kW emergency standby power choice, the engine can be configured for continuous duty generator diesel engine installations. When utilized in a prime power role, the continuous electrical output rating is adjusted downward by roughly 10% to accommodate prolonged loading cycles while ensuring component longevity.
What are the standard packaging configurations and shipping specifications for international export?
The net dry weight of the engine block assembly is approximately 1300 kg. Standard export packaging dimensions measure roughly 2150mm x 1150mm x 1750mm. HekoPower ships these units in completely enclosed, reinforced wooden crates lined with anti-humidity barriers to prevent environmental degradation during ocean shipping transit.
What generator size matches the 6ZTAA13-G4?
The engine is commonly used for 400kW generator systems and approximately 500kVA standby generator applications depending on alternator efficiency and operating conditions.
What is the advantage of the 13L Cummins platform?
The 13L platform offers a balance between:
- fuel efficiency
- durability
- load stability
- maintenance accessibility
for industrial generator applications.
