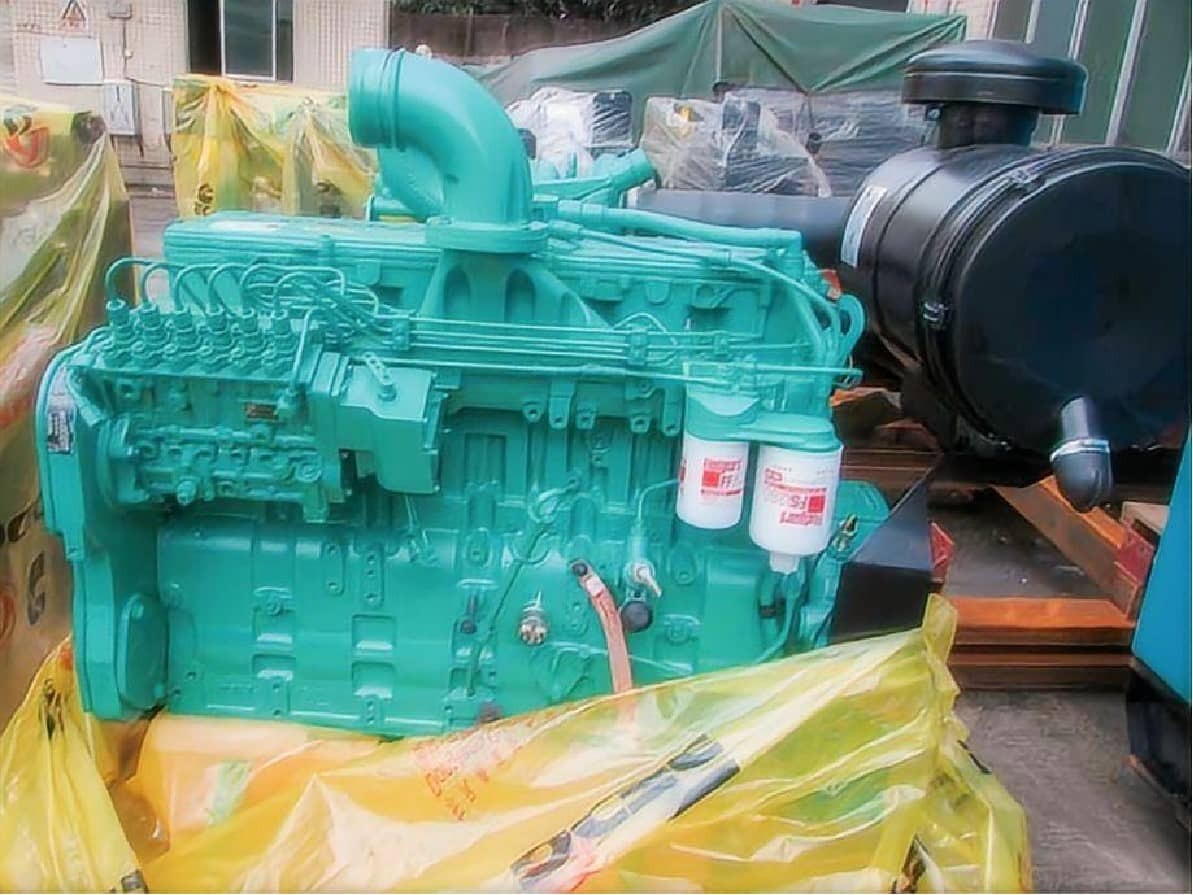

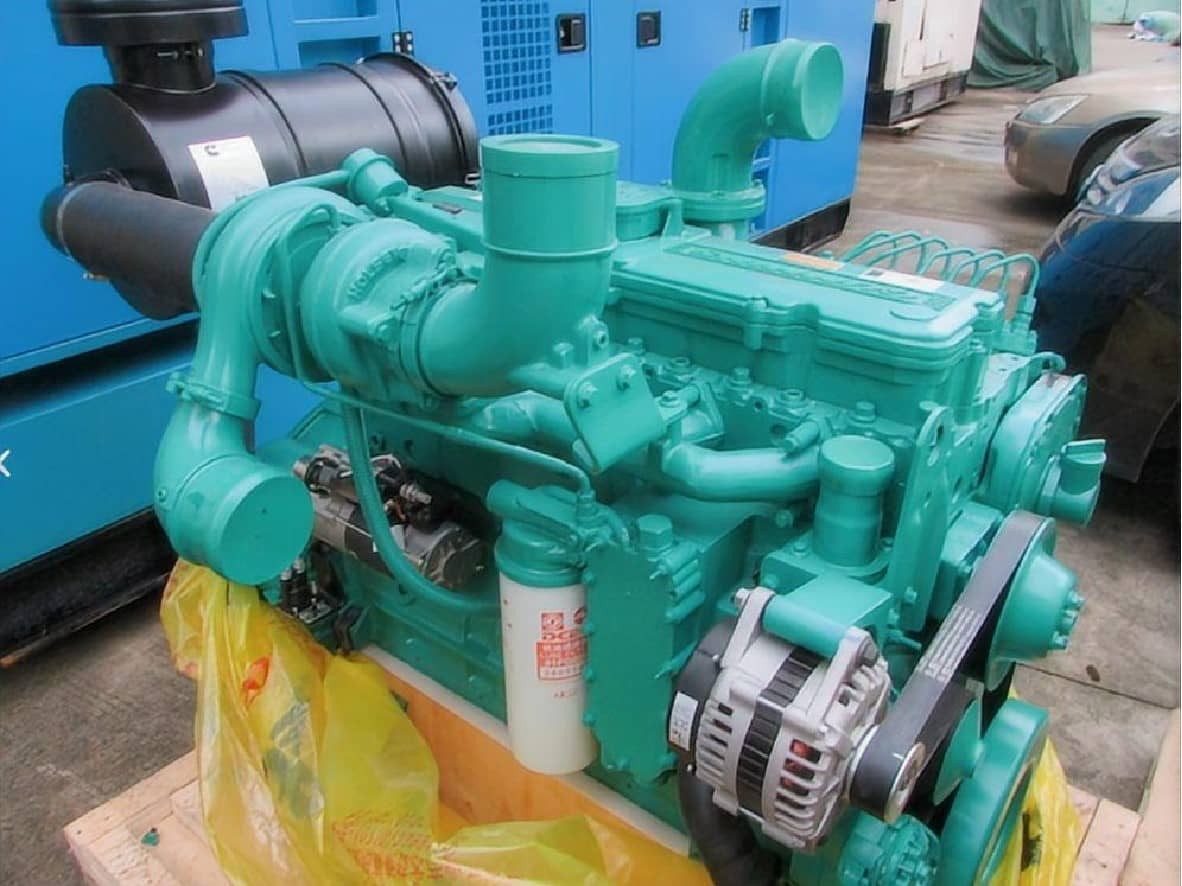

Cummins 6LTAA8.9-G2 220kW G-Drive Diesel Generator Engine
The DCEC Cummins 6LTAA8.9-G2 is a specialized 6-cylinder Cummins industrial engine optimized for G-Drive applications. Engineering a reliable power system requires an engine built for steady-state performance. This 8.9L turbocharged diesel engine for gensets provides the foundational mechanical strength necessary for international generator assemblers. As a dedicated global engine supplier, HekoPower sources these units directly from the Dongfeng Cummins factory floor. We ensure your production line receives authentic, high-performance machinery backed by full factory warranties.
Tech Specs of Cummins 6LTAA8.9-G2 220KW
General Engine Data
Engine Model: Cummins 6LTAA8.9-G2-220KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight: 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Key Performance Data
Rated Power/Standby Power(1500 rpm): 220 kW/295HP, 240 kW/322HP
Rated Power/Standby Power(1800 rpm): 235 kW/315 HP, 258 kW/346 HP
Continuous Output/Speed(1500 rpm): 180 kW/241HP @ 1500 rpm
Continuous Output/Speed(1800 rpm): 190 kW/255HP @ 1800 rpm
Rated Speed: 1500 rpm/1800 rpm
Low Idle Speed: 850-950 rpm
Fuel Consumption @ Running: ≤ 220g/Kw.h
Torque @ Rated/Standby Output: 1401/1528 N.m @ 1500 rpm
Torque/Standby Output: 1950 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC P7100 Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Governor Type: Electronic, Regulation ≤5%
Compression Ratio: 16.6:1
Fuel Delivery and Governor Calibration
The fuel injection architecture relies on the highly robust BYC P7100 fuel pump Cummins 6LTAA8.9-G2 specifications system. Unlike modern common-rail setups that are sensitive to poor fuel quality, this mechanical inline pump works alongside an electronic governor Cummins generator engine management kit. The combination guarantees swift response times during sudden load steps. When a facility demands immediate power, the electronic governor adjusts fuel delivery in milliseconds to prevent voltage dips.
Liquid Cooling Systems for Extreme Environments
Operating in high-ambient environments requires advanced thermal engineering. This water-cooled 6-cylinder Cummins engine features a high-capacity water pump and targeted cooling channels around the cylinder heads. If you are deploying an industrial generator engine for tropical climate operations, this thermal layout prevents premature heat fatigue. The jacket water system maintains stable block temperatures whether running at 1500rpm or 1800rpm.
Fuel Consumption Efficiency Curves
Controlling long-term operational costs depends entirely on finding a low fuel consumption industrial diesel engine. At a standard 1500rpm configuration, the engine optimizes fuel atomization to lower hourly consumption rates. The integrated turbocharger and air-to-air intercooler push dense, oxygen-rich air into the combustion chamber. This optimization guarantees that the Cummins 220 kW G-drive engine fuel consumption rate remains flat and predictable across 50%, 75%, and 100% load profiles.
Engineering Differences: 6LTAA8.9-G2 vs. Competitor Models
Selecting the correct model prevents premature equipment failure. Buyers often confuse the G2 variant with other 8.9L sister models on the market, which leads to installation issues during assembly.
G2 Standby vs. G3 Prime Variations
The structural differences between the 6LTAA8.9-G2 and the 6LTAA8.9-G3 relate directly to baseline timing profiles and turbocharger wastegate limits. The G2 profile is fine-tuned as a Cummins standby generator engine, engineered to maximize immediate torque deployment. The G3 variation is set up for continuous, steady prime loads. Mixing up these models changes the structural performance and emission balances of your final generator build.
Mechanical G-Drive vs. Industrial Variable Speed Units
An industrial variable-speed engine changes its RPM continuously to drive hydraulic pumps or construction equipment. In contrast, the Cummins 220kW constant speed generator engine is locked into synchronous electrical frequencies. The internal crankshaft counterweights and flywheel housing are balanced specifically for 1500rpm (50Hz) or 1800rpm (60Hz) operation. Using a variable-speed industrial engine inside a synchronous genset causes destructive harmonic vibrations.
Real-World Industrial Deployment Environments
The 6LTAA8.9-G2 serves as the mechanical backbone for vital infrastructure projects worldwide. Its versatile power output matches the rigid standards of multiple industrial sectors.
Critical Backup for Healthcare Facilities
A Cummins engine for hospital backup generators must start within seconds of a utility grid failure. Life-support equipment relies on immediate, clean power delivery. The electronic governor on this model prevents frequency fluctuations that could damage sensitive hospital electronics. The mechanical stability of the 8.9L platform ensures reliable operation throughout extended grid blackouts.
Data Center Infrastructure Protection
Data centers demand steady power to maintain server uptime. Using a Cummins engine for data center standby power provides a dependable defense against grid volatility. When configured as an industrial emergency power generator engine, this model manages sudden load steps smoothly. The dense thermal layout handles continuous operation without dropping performance levels.
Energy Security for Remote Telecommunications
Isolated communication hubs require off-grid energy setups that can survive without constant human intervention. The Cummins engine for telecom power station duty provides extended service intervals. Its mechanical durability cuts down the need for field repairs, making it an excellent choice for remote installations.
Severe Duty Sourcing for Global Projects
Heavy industries require rugged machinery that can withstand harsh environments. Sourcing a reliable prime power engine for Africa market operations means picking an engine that handles high dust levels and low-grade fuel. Similarly, projects using a Cummins engine for Southeast Asia generator projects must cope with extreme humidity. The anti-corrosive coatings on the DCEC block prevent rust from degrading the exterior components over time.
Installation, Component Maintenance, and Sourcing Strategies
Successful integration requires precise physical planning. Generator set manufacturers must align their structural base frames with the exact physical footprint of the engine block.
Dimensional Layout for Genset Packaging
Engineering teams must review the 6LTAA8.9-G2 diesel engine dimensions and weight for genset assembly before welding the structural skid. This heavy-duty standby power diesel engine requires an open footprint that accommodates the side-mounted oil filters and the rear flywheel housing. Miscalculating structural clearances blocks vital airflow and complicates routine oil changes during service intervals.
Critical Maintenance Profiles for Emergency Power Units
Emergency engines spend months sitting idle, making them vulnerable to oil degradation and fuel varnishing. Regular filter rotations keep the inline injection pump free of water contamination. Checking the belt tensioner on the water-cooled system prevents unexpected overheating during emergency start-ups. Using original DCEC filtration components protects the tight clearances inside the fuel nozzles.
Sourcing Direct From a Verified Engine Supplier
Acquiring machinery through unverified channels risks exposure to refurbished or look-alike blocks. HekoPower functions as a wholesale Cummins 6LTAA8.9-G2 engine supplier, delivering units with traceable factory serial numbers. Purchasing a genuine Cummins generator drive diesel engine guarantees that all internal components meet original engineering tolerances. Our direct factory access allows us to offer an affordable Cummins 6LTAA8.9-G2 factory price to international buyers.
Cummins L8.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-G2-220KW, 6LTAA8.9-G3-230KW.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the 6LTAA8.9-G2
What defines an OEM DCEC Cummins generator engine?
Mining Equipment
An OEM DCEC engine is manufactured by the Dongfeng Cummins Engine Company joint venture plant in China. These engines follow the exact engineering designs, quality metrics, and material standards set by Cummins Inc. They deliver authentic global performance at a more accessible commercial price point.
Can this engine support both 50Hz and 60Hz generator configurations?
Yes, the fuel system adjusts to support both frequencies. It functions efficiently as a Cummins 6LTAA8.9-G2 50Hz 1500rpm engine supplier choice, or as a Cummins 1800rpm industrial generator drive engine for 60Hz grids. The electronic governor allows technicians to change speed settings to match local grid requirements.
Why is a mechanical pump preferred over common-rail fuel systems in remote areas?
The BYC P7100 mechanical pump handles variable fuel quality much better than high-pressure common-rail systems. For a diesel engine for mining generator set or a generator engine for construction site power supply, fuel supplies often contain trace water or dust. Mechanical systems resist wear from these impurities, avoiding the sudden electronic shutdowns common in delicate electronic engines.
What shipping standards does HekoPower use for global exports?
Every export standard Cummins generator engine leaves our facility inside heavy-duty, moisture-proof maritime packaging. We secure all structural components to prevent movement during transit. Our export documentation includes original factory test records and origin certificates to ensure fast customs clearance at your destination port.
