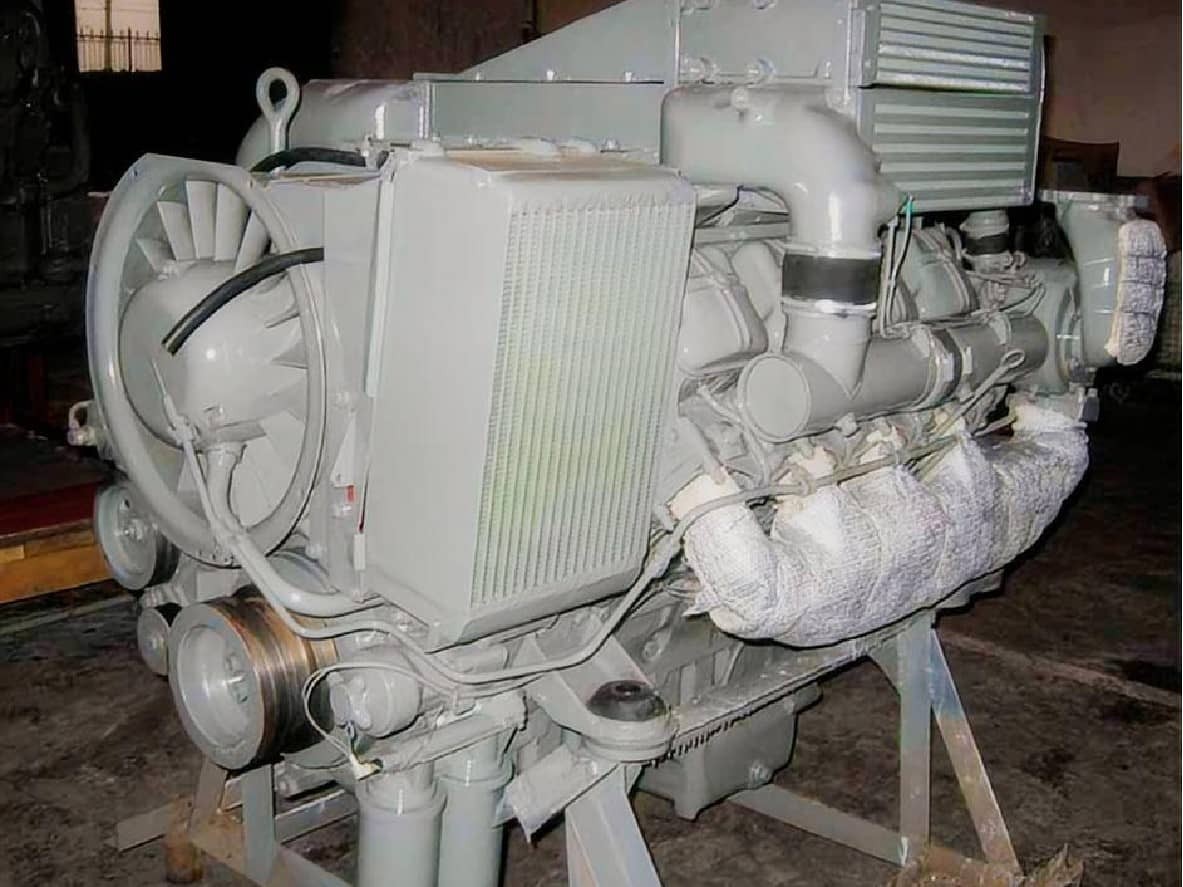

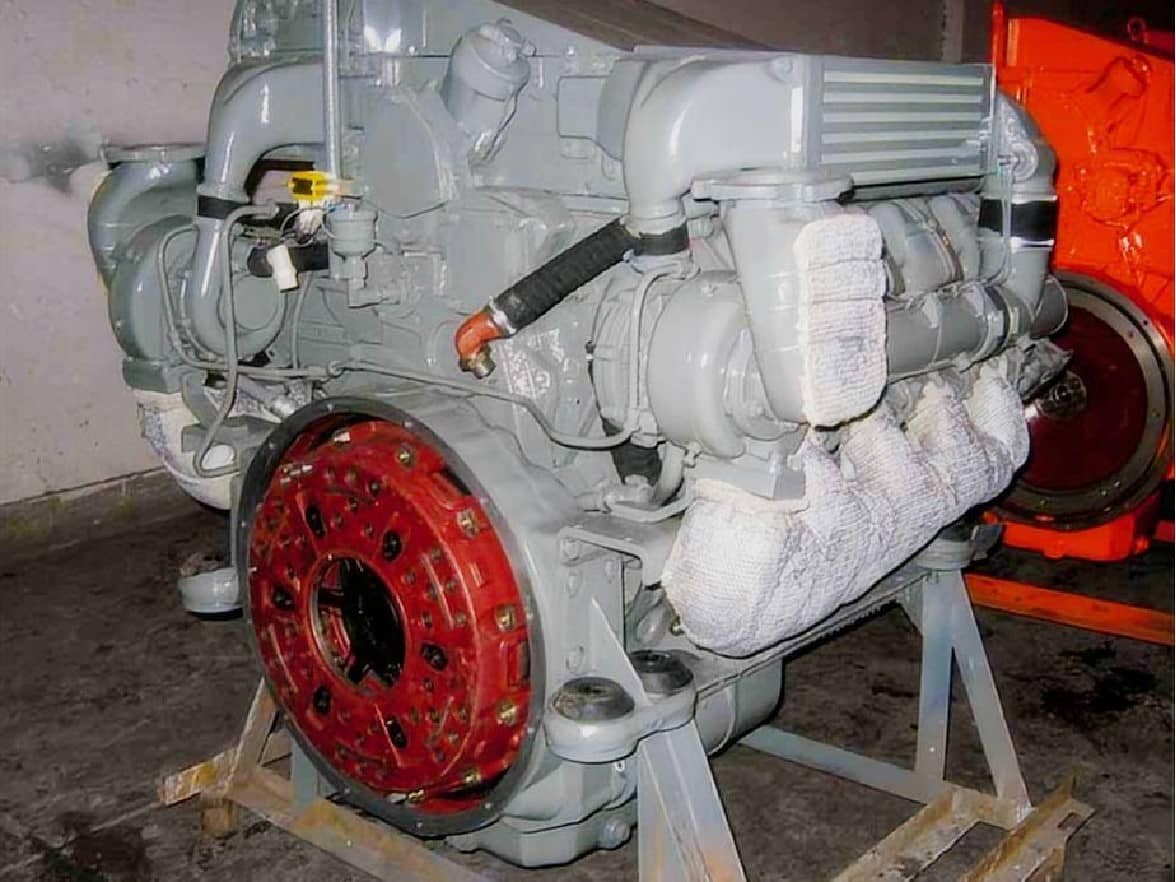

Deutz BF8L413FC-Construction Diesel Engine
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
Deutz BF8L413FC-Construction Diesel Engine could available for Heavy Truck, Excavator, Vehicles, Road roller, Bulldozer, Crane, water pump, Construction machinery and Industrial Engine power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz BF8L413FC-Construction Diesel Engine
Type: 8 Cylinders in Line, V Type
Displacement: 12.763 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel & alternator): 970 Kg
Overall Dimension: 1260mm*1070mm*1030mm
Key Performance Date
Rated Power: 213-235 KW
Rated Speed: 2300-2500 rpm
Max Torque/Speed: 1102 N.m @ 1800 rpm
Min Fuel Consumption @ Full Load: 218 g/Kw.h
Idle Speed: 600 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 16.5:1
Governor Type: Mechanical/Electronic Governor
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Deutz FL413/FL513-Construction Diesel Engine Series
Deutz FL413-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz BF8L413FC, Deutz BF12L413F, Deutz F10L413F, Deutz BF8L513FC, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C.
