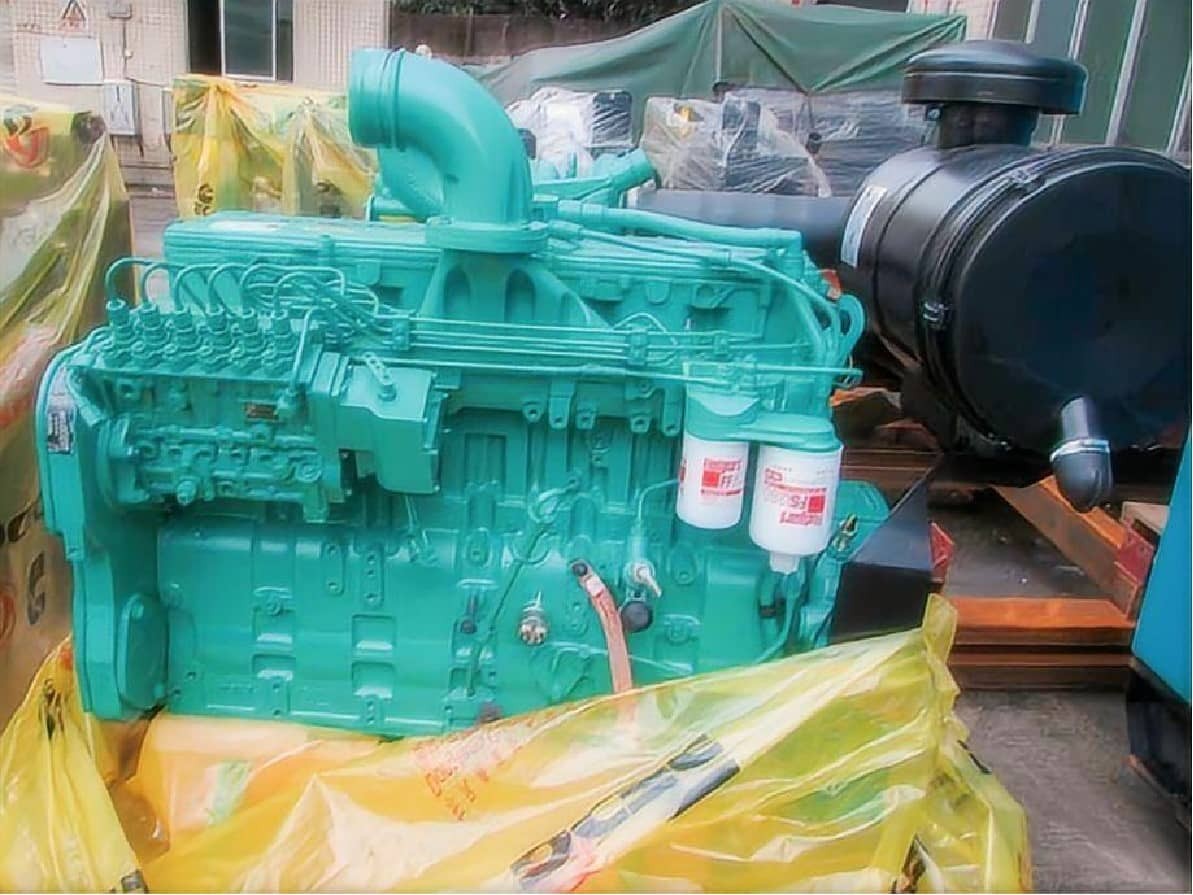

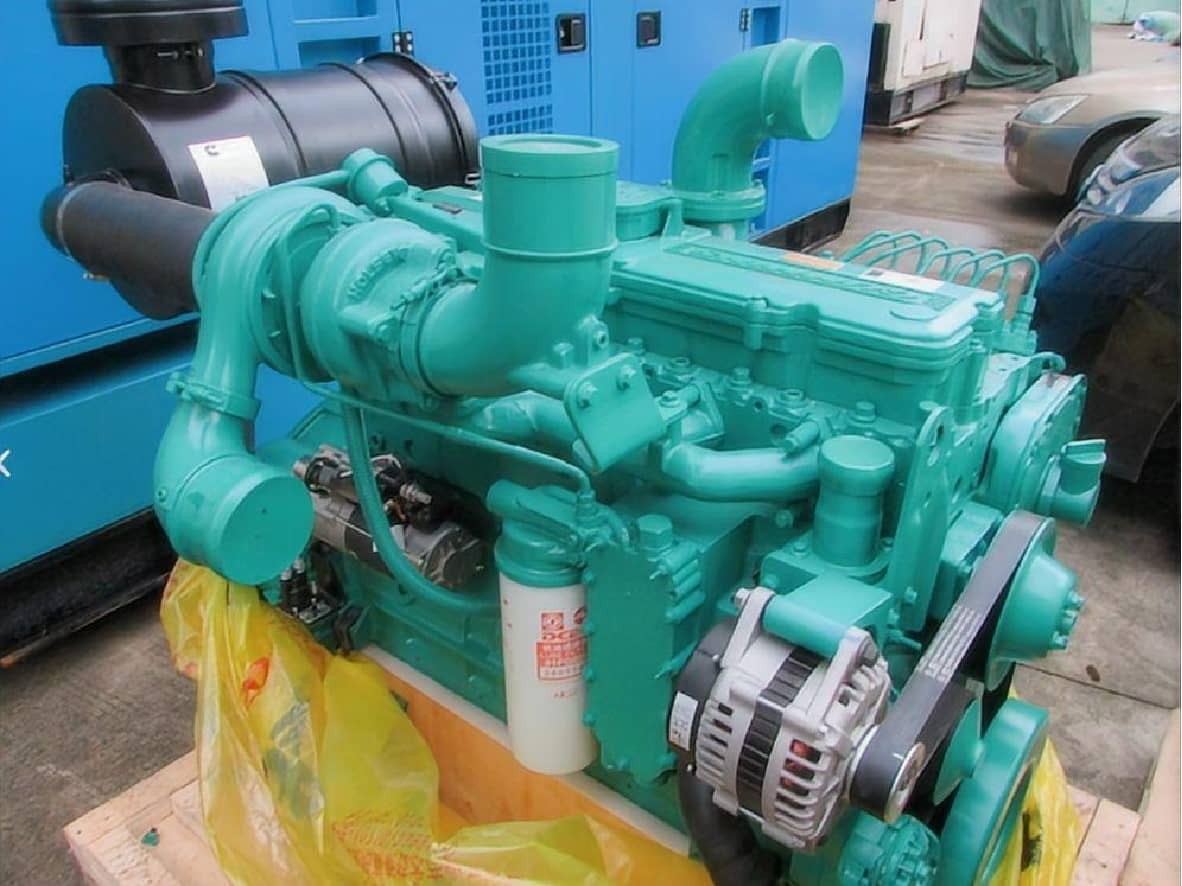

DCEC Cummins 6LTAA9.5-G1 Generator Engine: 290 kW Prime Power for Heavy-Duty Applications
The DCEC Cummins 6LTAA9.5-G1 is a highly sought-after 9.5 liter diesel engine engineered specifically for heavy-duty generator sets. Operating at a steady 1500 RPM for 50 Hz markets, this 6-cylinder powerplant delivers a robust 290 kW of prime power and 320 kW of standby power. When configured for 1800 RPM in 60 Hz environments, it outputs 280 kW of prime power and 310 kW of standby power. As an authorized Cummins 6LTAA9.5-G1 engine supplier in China, HekoPower provides this genuine Cummins L9.5-G series engine to power generation packagers, mining operators, and industrial facilities worldwide.
Unlike highly digitized modern engines that require specialized diagnostic software for every minor fault, the 6LTAA9.5-G1 is built around a heavy-duty mechanical fuel system. It utilizes a proven Bosch P7100 or equivalent BYC PB injection pump paired with a highly responsive electronic governor. This unique combination guarantees precise engine speed control—essential for stable AC frequency—while maintaining the sheer mechanical ruggedness needed to survive in remote or harsh environments where fuel quality cannot always be guaranteed.
Tech Specs of Cummins 6LTAA9.5-G1 Generator Engine
General Engine Data
Engine Model: Cummins 6LTAA9.5-G1
Type: 6 Cylinders in Line
Displacement: 9.5 L
Bore * Stroke: 116 X 148 mm (4.48 X 5.82 in)
Net Weight (with flywheel & alternator): 945 Kg
Overall Dimension: 2110mm*1102mm*1598mm
Key Performance Data
Rated Power/Speed 1: 290 kW/389HP (1500 RPM)
Rated Power/Speed 2: 280 kW/375HP (1800 RPM)
Fuel Consumption (50Hz): 68L/h
Fuel Consumption (60Hz): 65L/h
More Technical Data
Aspiration: Turbocharged-Intercooled
Fuel System: BYC PB Type Injection Pump + RSV Governor
Electrical System: 24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 34 L
Compression Ratio: 17.3:1
Technical Comparison: Cummins 6LTAA9.5-G1 vs 6LTAA9.5-G3 Generator Engine
When sourcing a replacement engine for a diesel generator, engineers and procurement managers frequently ask about the differences between the 6LTAA9.5-G1 and its sibling, the 6LTAA9.5-G3. While both engines share the exact same 9.5L displacement, 116.5 mm bore, 148 mm stroke, and CPL 4603 architecture, they are tuned for completely different electrical load requirements.
The 6LTAA9.5-G1 is the high-output variant in this family. It is optimized to deliver 290 kW of prime power at 1500 RPM, making it the premier choice for assembling 250 kW to 275 kW generator sets. Its turbocharger and air-air intercooler system are precisely matched to handle the higher thermal loads and massive intake air requirements of a 290 kW engine operating at continuous base loads.
In contrast, the 6LTAA9.5-G3 is conservatively tuned for lower power demands. At 1500 RPM, the G3 model produces 250 kW of prime power. This makes the G3 ideal for slightly smaller gensets where maximum fuel economy at lighter loads is prioritized over raw kilowatt output. If your facility requires maximum standby capability to support heavy startup currents from industrial motors, HVAC systems, or chillers, the 6LTAA9.5-G1 offers the necessary performance overhead that the G3 simply lacks.
Furthermore, when comparing the 6LTAA9.5-G1 1500 RPM vs 1800 RPM configurations, buyers will notice a slight drop in total kW output at the higher engine speed, shifting from 290 kW down to 280 kW. This is a standard characteristic of the 9.5L engine block's volumetric efficiency curve, ensuring that 60 Hz users still receive stable, continuous power without overstressing the internal mechanical components over long operating hours.
Real Application Scenarios for the 6LTAA9.5-G1
The 6LTAA9.5-G1 generator drive engine is not designed for light, intermittent residential backup; it is an industrial workhorse. HekoPower frequently facilitates genuine Cummins 6LTAA9.5-G1 generator engine wholesale orders for deployment in continuous-use environments.
Remote mining camps and off-grid construction sites are prime deployment areas for this model. In these locations, fuel quality can be highly inconsistent, often containing elevated levels of water or particulates. The mechanical fuel pump on the 6LTAA9.5-G1 is highly tolerant of sub-optimal diesel, preventing the catastrophic fuel injector failures commonly seen in highly sensitive, high-pressure common-rail systems.
Telecommunications hubs, hospitals, and data centers also rely heavily on this engine for critical standby power. Because the engine features an electronic governor rather than a purely mechanical one, it reacts almost instantly to sudden electrical load additions. When a facility loses grid power and the automatic transfer switch engages, the 6LTAA9.5-G1 ramps up rapidly, maintaining a tight frequency regulation that protects sensitive server equipment from damaging voltage sags.
Additionally, this unit serves as a perfect replacement engine for aging diesel generators. If an existing generator's alternator is still in excellent condition but the original prime mover has suffered catastrophic failure, dropping in a new DCEC 6LTAA9.5-G1 is a highly cost-effective way to extend the lifespan of the entire generator set without purchasing a completely new canopy and chassis.
Expert Maintenance and Replacement Tips
Maximizing the lifespan of your Cummins 6LTAA9.5-G1 requires adherence to a strict, proactive maintenance schedule. Because this is a high-compression, turbocharged engine, clean intake air is just as critical as clean engine oil.
Always monitor the air intake restriction indicator. The maximum allowable intake air restriction for this engine with a dirty filter element is 6.2 kPa. Operating the engine beyond this limit forces the turbocharger to work exponentially harder, dramatically increasing exhaust gas temperatures and significantly reducing the lifespan of the turbocharger bearings. We strongly advise replacing the heavy-duty air cleaner elements before they reach maximum restriction, especially when operating in dusty quarry or agricultural applications.
For cooling, the 6LTAA9.5-G1 engine relies on an air-air charge cooled system with a total coolant capacity of approximately 55.5 liters. HekoPower recommends maintaining a strict 50 percent ethylene glycol to 50 percent water coolant ratio. This not only prevents freezing in low ambient temperatures but dramatically raises the boiling point of the coolant, protecting the engine block during extended 100 percent load runs in peak summer heat.
If you are purchasing the 6LTAA9.5-G1 as a replacement engine, always verify your existing alternator's coupling dimensions. The engine features a standard SAE 1 flywheel housing, making it highly compatible with most major alternator brands, facilitating a smooth and straightforward integration process.
Common Misconceptions About Mechanical Pump Engines
A frequent misconception among procurement managers is that an engine with a mechanical fuel pump cannot provide the stable electricity required by modern digital electronics. This is a complete misunderstanding of how the 6LTAA9.5-G1 operates.
While the fuel delivery mechanism itself is mechanical—which provides immense durability and tolerance to poor fuel—the engine is fitted with a highly advanced electronic governor. This governor constantly monitors engine RPM and adjusts the mechanical fuel rack electronically in milliseconds. The result is an engine that offers the ruggedness of analog fuel delivery combined with the precise frequency control of a modern digital engine, easily meeting the power quality standards required by modern server racks and medical equipment.
Another misconception relates to the 6LTAA9.5-G1 engine dimensions and weight. Buyers upgrading from older 8.3L engines sometimes assume a 9.5 liter diesel engine will be massively larger and will not fit inside their existing soundproof generator canopy. In reality, the dry weight of this engine is approximately 650 kg, and its overall footprint remains incredibly compact for its displacement, allowing it to easily retrofit into standard 250 kW generator enclosures without requiring expensive structural modifications to the base frame.
Explore the Complete Cummins L9.5-G Series
The 6LTAA9.5-G1 is just one powerful option within Dongfeng Cummins' robust generator drive lineup. If your project requires different power nodes, specific emissions certifications, or alternative cooling configurations, our catalog covers the entire spectrum of this engine family. As a dedicated engine supplier, HekoPower is ready to help you match the exact engine to your power generation requirements.
Cummins L9.5-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA9.5-G1, 6LTAA9.5-G3.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the fuel consumption of the Cummins 6LTAA9.5-G1?
Fuel efficiency is a major operational advantage for the 6LTAA9.5-G1. When operating at 1500 RPM under a 100 percent prime power load, the engine fuel consumption is approximately 70 liters per hour. At a maximum 100 percent standby load, consumption rises slightly to 78 liters per hour.
Are you a direct supplier of the DCEC 6LTAA9.5-G1?
Yes. HekoPower is a professional Cummins 6LTAA9.5-G1 replacement engine supplier based in China. We export genuine Dongfeng Cummins generator engines globally, providing comprehensive technical support, competitive wholesale pricing, and rapid logistics for both OEMs and end-users.
Can the 6LTAA9.5-G1 be used for both 50Hz and 60Hz power generation?
Yes. The 6LTAA9.5-G1 is a dual-speed compatible engine. It can be configured to run at 1500 RPM for 50 Hz markets or 1800 RPM for 60 Hz markets. You must specify your required operating frequency when ordering so the factory electronic governor can be calibrated accurately prior to shipment.
What is the difference between prime power and standby power on this engine?
Prime power (290 kW) means the engine can run continuously for an unlimited number of hours per year under a variable electrical load, with a 10 percent overload capability available for one hour every twelve hours. Standby power (320 kW) is the absolute maximum output, strictly reserved for emergency situations during a utility grid failure, with no overload capability allowed.
