Details

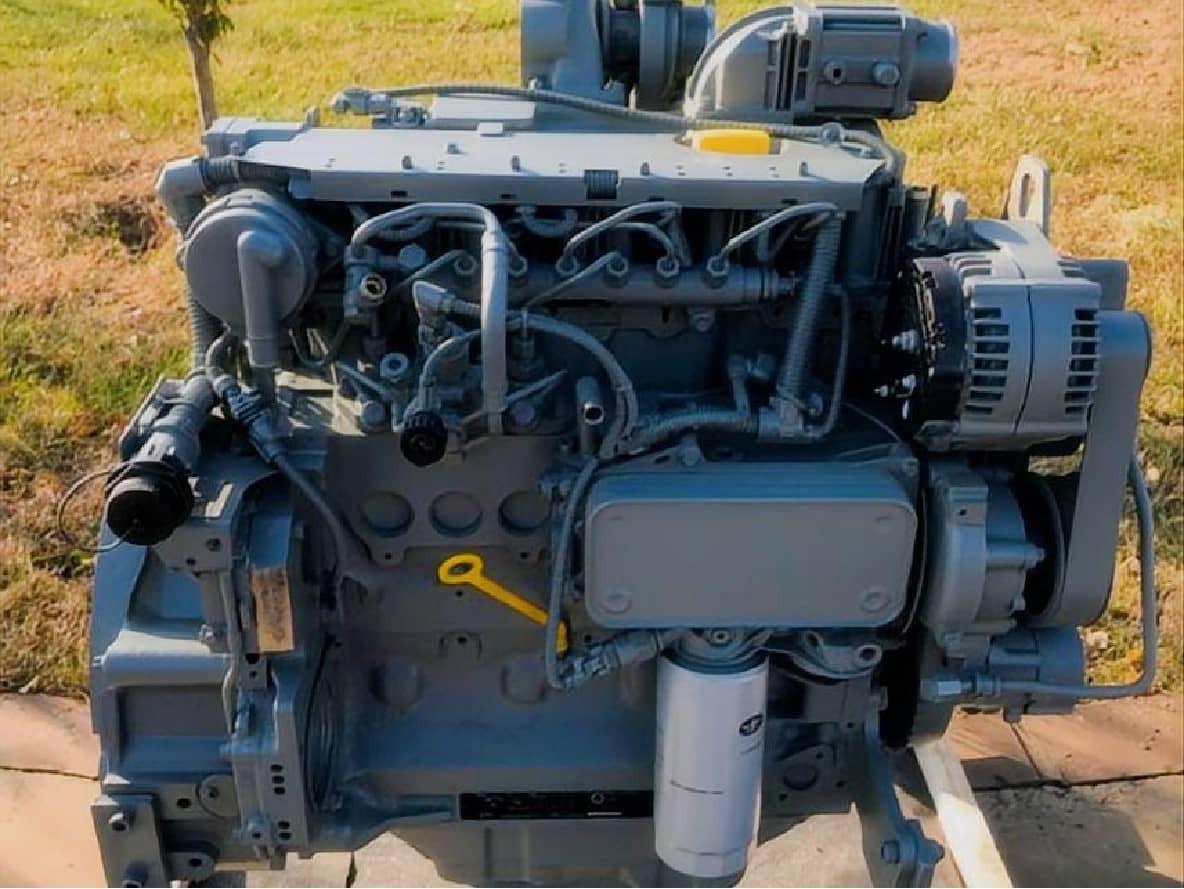

Deutz TCD2012-L6-208HP
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
Deutz TCD2012-L6-208HP could be available for Heavy Truck, Excavator, Vehicles, Road roller, Bulldozer, Crane, water pump, Construction machinery and Industrial Engine power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz TCD2012-L6-208HP
Type: 6 Cylinders in Line
Displacement: 6.06 L
Bore * Stroke: 101*126
Net Weight (with flywheel and alternator): 620 Kg
Overall Dimension: 1082mm*678mm*946mm
Key Performance Date
Rated Power: 155kW/208HP
Rated Speed: 2400 rpm
Max Torque/Speed: 810 N.m @ 1600 rpm
Min Fuel Consumption @ Full Load: 215 g/Kw.h
Idle Speed: 650 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Charged Air Cooling
Fuel System: Common Rail Injection System, EMR4
Cooling Method: Water Cooled
Exhaust System: EAT/DPF
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Radio: 18.1:1
Deutz TCD-Construction Diesel Engine Series
Deutz TCD-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes TCD2015V06, TCD2015V08, TCD2012-L4 (138HP), TCD2012-L4 (160.9HP), TCD4.1-L4, TCD2012-L6 (208HP), TCD2012-L6 (252.1HP), TCD6.1-L6.
